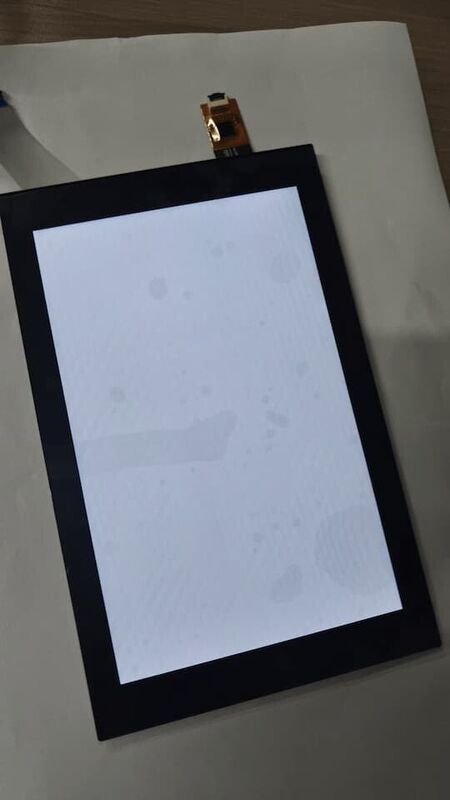

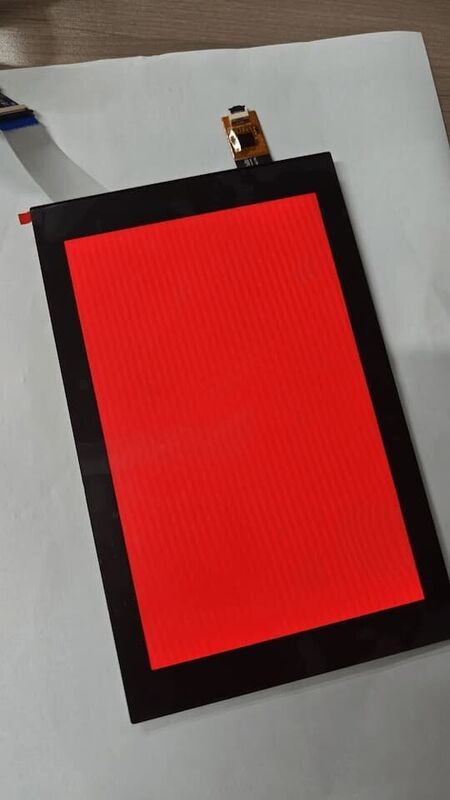

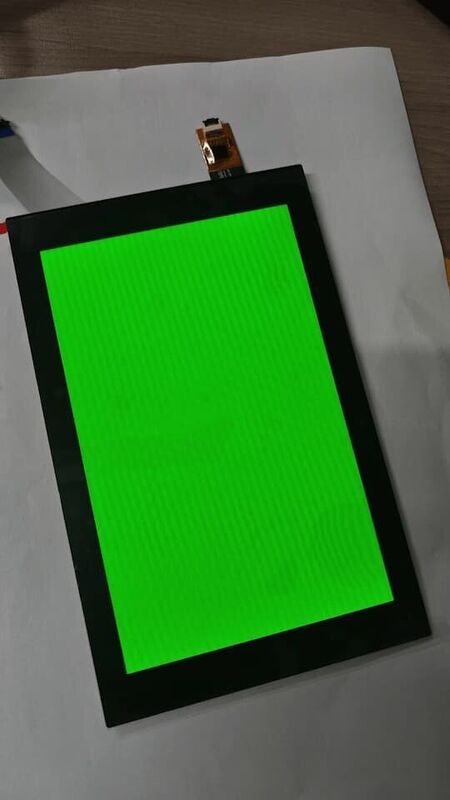

Name: 7 Inch TFT LCD DISPLAY MODULE (Integrated LCM Display Module)
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS070-V1
Price: 65.00 USD
Availability: InStock

Home > Products > TFT LCD Display Module >

7 Inch TFT LCD DISPLAY MODULE (Integrated LCM Display Module)

7 inch TFT LCD module

Integrated LCM display module

TFT LCD display with warranty

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS070-V1

Document:

Sepcification_DRS 070BFW863...V1.pdf

Chat Now

Request A Quote

Product Details

Brightness:

250 Cd/m²

SIZE:

7.02

Resolution:

1200x3(RGB)X1920

Display Mode:

Normally Black

Pixel Pitch:

0.07875 X 0.07875

Active Area:

94.5(w)x151.2 (h)

Panel Size:

111*166*3.2

Surface Treatment:

Hard Coating

Color Arrangement:

RGB-STRIPE

Interface:

MIPI

Panel Power Consumption:

Typ.014(max.017)

Highlight:

7 inch TFT LCD module

Integrated LCM display module

TFT LCD display with warranty

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

45-85 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

15-18 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

7 Inch TFT LCD DISPLAY MODULE (Integrated LCM Display Module)

Chat Now

video

2.0 Inch 240x320 TFT LCD Display Module Normally Black RGB LCD Display For DIY Projects

Chat Now

video

2.95 Inch 480x854 TFT LCD Screen Module 350 cd/m2 LCD Touch Display Module

Chat Now

video

3.95 Inch TFT LCD Display Module 350 cd/m2 Square TFT Display 720x720

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

Product Overview (Google SEO Optimized)

The 7-inch TFT LCD Display Module is an all-in-one integrated LCM display unit integrating TFT panel, backlight system, driver IC, FFC connector and fixed support frame. Different from bare LCD panels, this integrated module completes internal circuit debugging and parameter calibration in the factory, realizing true plug-and-play installation. Adopting 1200x3(RGB)x1920 high-definition resolution and 24-bit full-color display technology, it presents delicate and layered image details. Equipped with a standard LVDS high-speed transmission interface, it supports stable signal output and low interference transmission. It is specially optimized for mini laptop and portable mobile device assembly, greatly simplifying customer development and assembly procedures, shortening product launch cycle, and is the preferred integrated display solution for medium and high-end portable electronic terminals.

Technical Specifications

Model Number	DRS070-V1
Display Size	7.0 inches
Resolution	1200x3(RGB)x1920
Brightness	250 cd/m² (nits)
Interface Type	RGB
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	170°+ (Full View)
Cover Lens	Black Glass / Anti-glare IPS
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Technical Features

Core Product Advantages

1. All-in-one integrated design, no need for secondary circuit debugging, reducing customer assembly difficulty;

2. Built-in high-performance driver IC, stable signal transmission and excellent anti-interference ability;

3. HD resolution display, richer color layers and clearer picture details;

4. Standard industrial-grade assembly process, firm structure, not easy to loose after long-term use;

5. Compatible with multiple mainstream control systems, strong equipment adaptability and high development efficiency.

Application Fields

Mini ultra-thin laptops, portable industrial notebooks,

mobile POS terminals,

intelligent vehicle-mounted display screens,

handheld medical equipment,

portable testing instruments,

commercial small display terminals,

smart wearable display devices.
