Place of Origin:
Shenzhen, China
Brand Name:
Dingruishi
Certification:
CE, RoHS, ISO9001
Model Number:
DRS043-V1

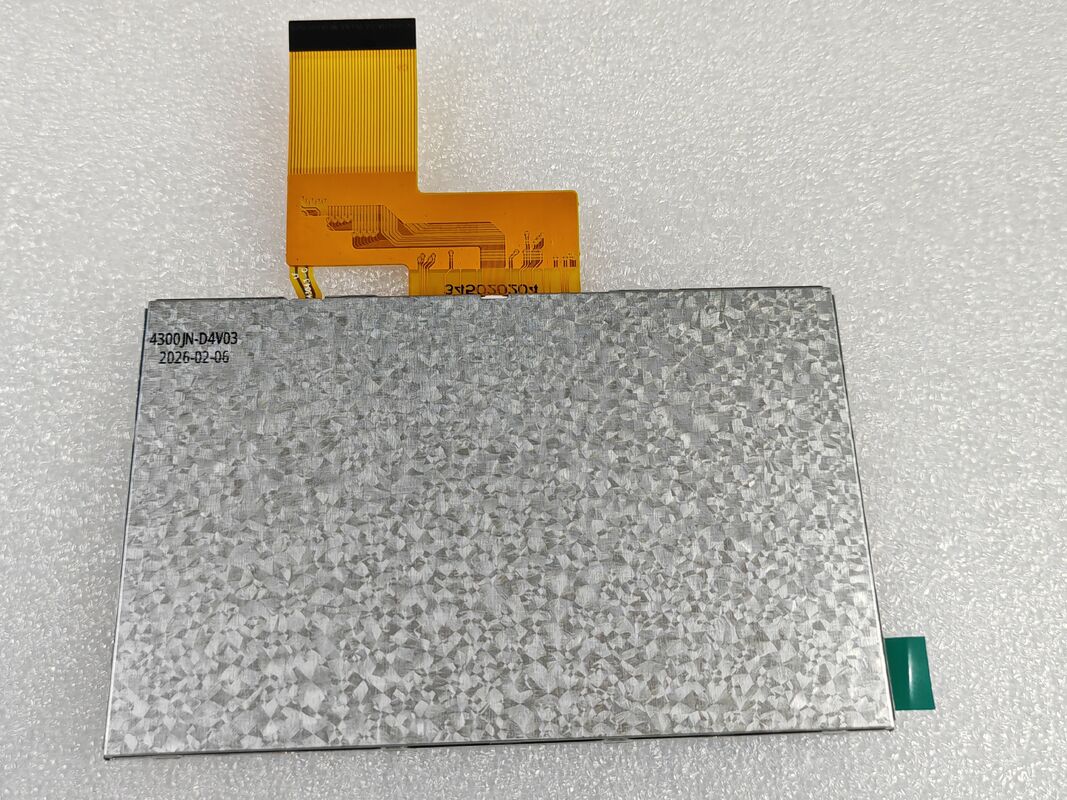

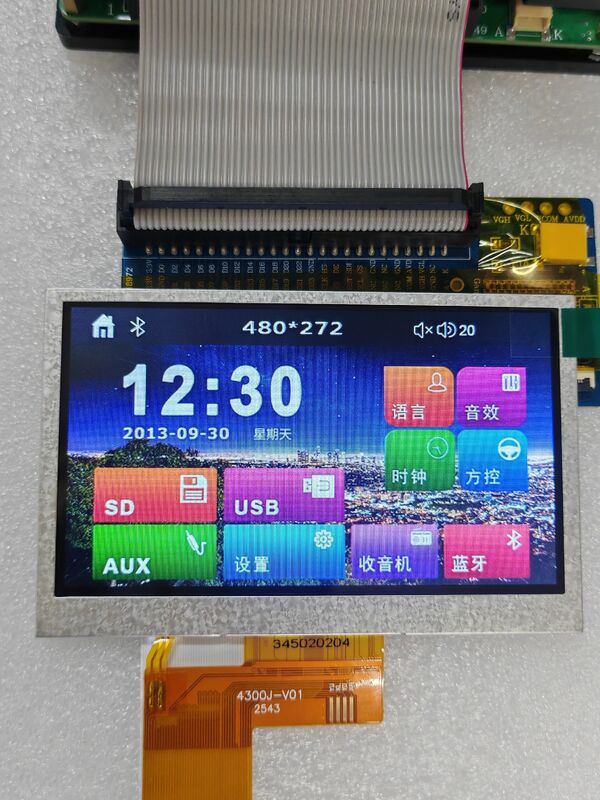

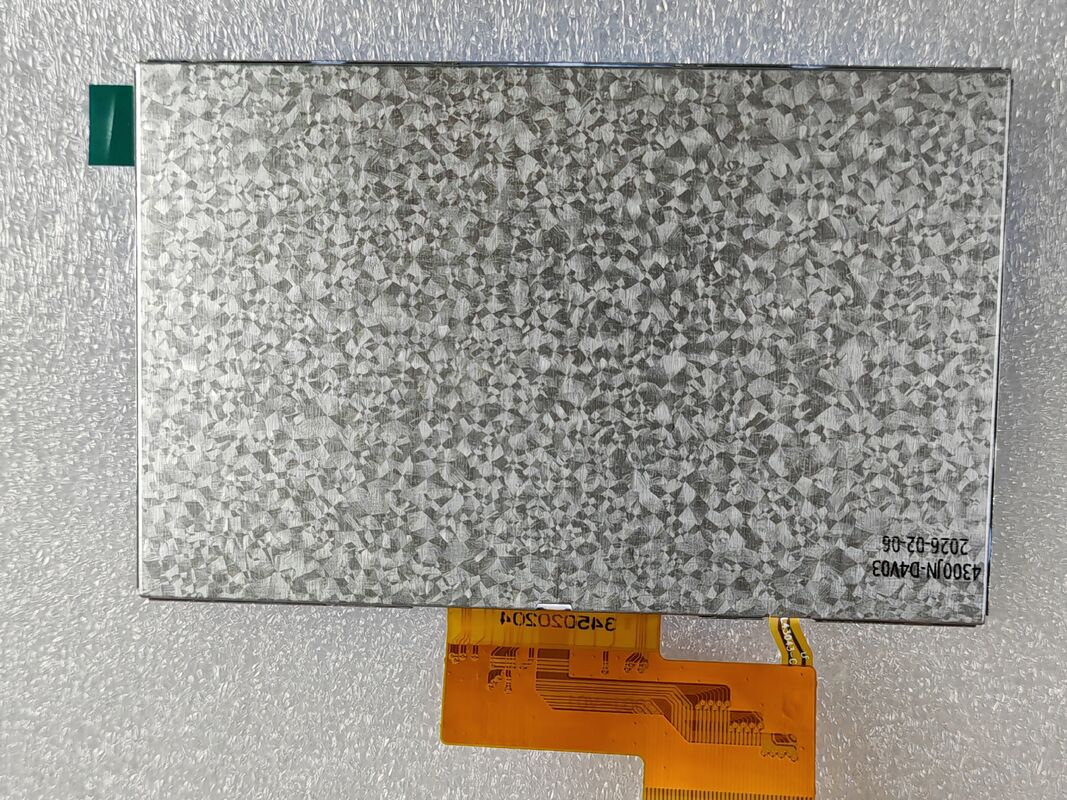

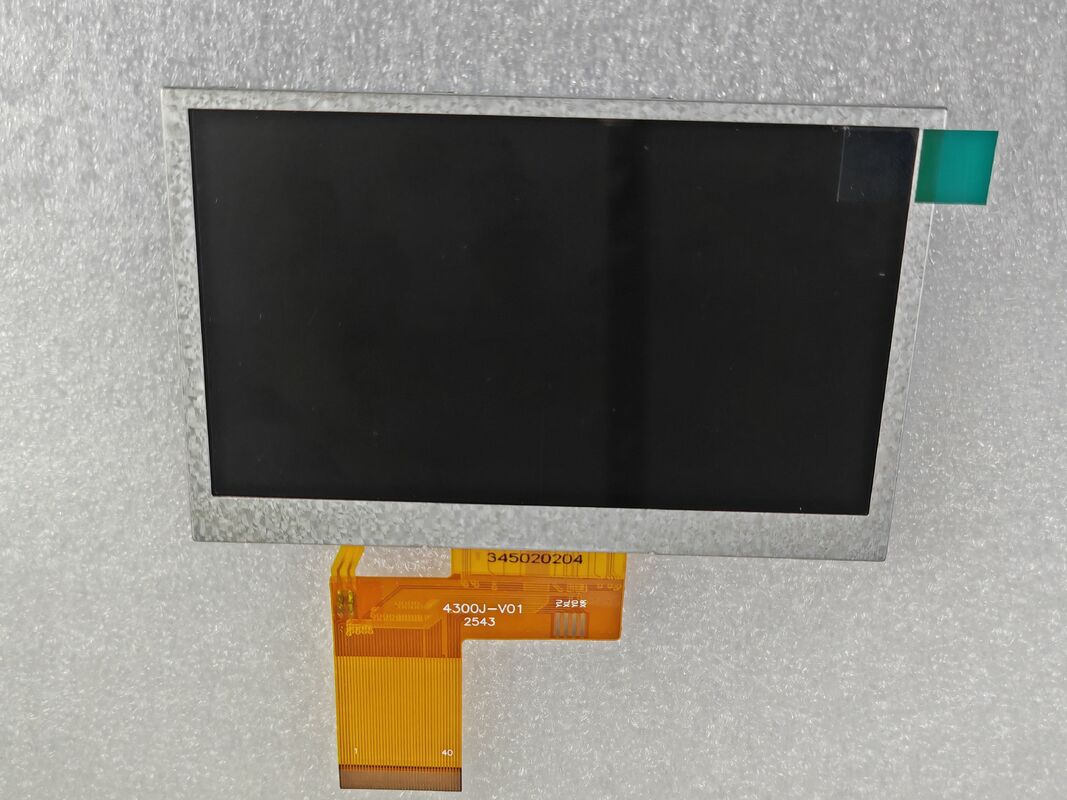

Dingruishi DRS043 4.3 Inch TFT Module 480x272 IPS Display with Capacitive Touch, 40-Pin RGB Interface, 300 cd/m² Brightness, Black Glass Cover for Industrial Automotive Medical
| Model Number | DRS043-V1 |
| Display Size | 4.3 |
| Resolution | 480*272 |
| Brightness | 300 cd/m² (nits) |
| Interface Type |
40p RGB |
| Touch Screen | Yes (Capacitive / CTP Resistive Touch) |
| Viewing Angle | IPS (Full View / 170°+) |
| Cover Lens | Black Glass / Anti-glare (if applicable) |
| Application | Industrial Control, HMI, Medical, Automotive, IoT |
| Packing Size | 20cm * 30cm * 40cm |
| Operation Temperature(°C) | -20~70 |
| Minimum Order Quantity | 100pcs |
Supported by 40p RGB, this type of TFT can be used in many applications.The operation temperature is -20°C to 70°C and the storage temperature is -20°C to 70°C which compliant with industry standards. Its popular size and versatility make it perfect for everything from DIY electronics to commercial products.
