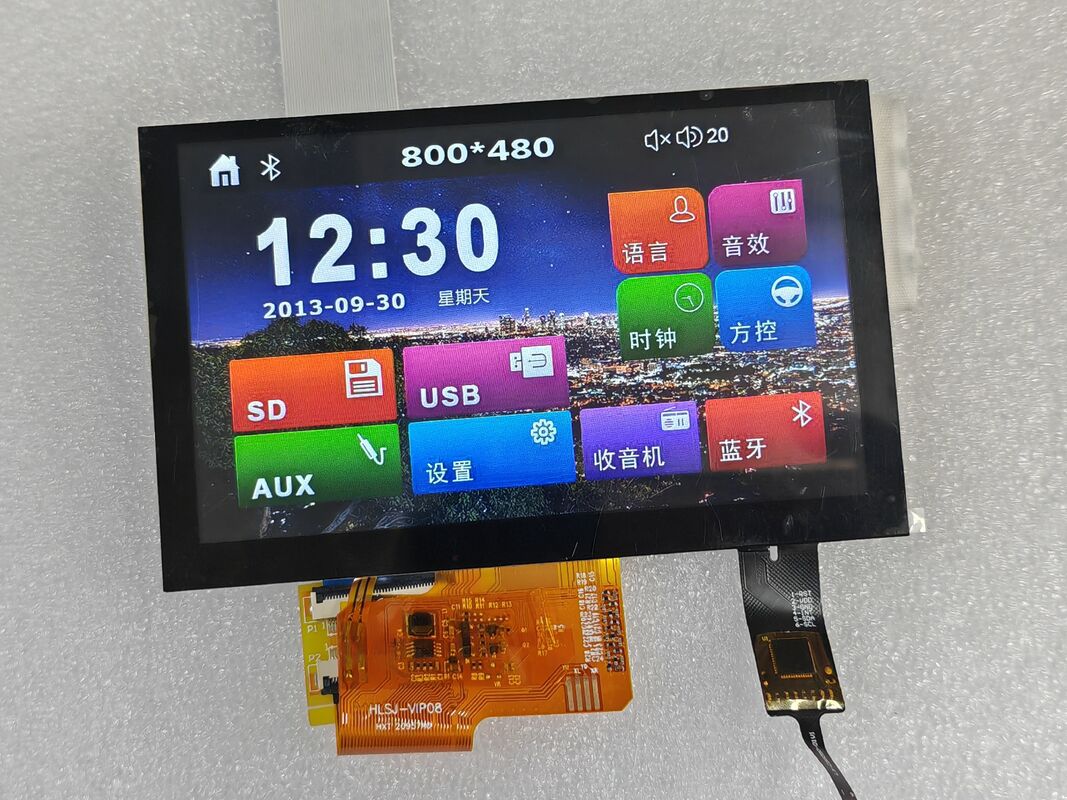

Name: 7 Inch TFT Touch Screen 800x480 50 Pin LCD Display 300 Nits
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS070-V1
Availability: InStock

Home > Products > TFT Touch Screen >

7 Inch TFT Touch Screen 800x480 50 Pin LCD Display 300 Nits

7 Inch TFT Touch Screen

TFT Touch Screen 800x480

50 Pin LCD Display 300 Nits

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS070-V1

Chat Now

Request A Quote

Product Details

Brightness(cd/m²):

300

Interface:

50p RGB

Resolution:

800*480

Supply Ability:

500,000pcs Per Week

Delivery Time:

5-8 Working Days

Minimum Order Quantity:

100pcs

Highlight:

7 Inch TFT Touch Screen

TFT Touch Screen 800x480

50 Pin LCD Display 300 Nits

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Please contact us for latest price

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

4.3 Inch TFT Touch Screen 480x272 TFT LCD Capacitive Touchscreen 300 cd/m2

Chat Now

video

50 Pin RGB Interface Industrial Touch Display 300 cd/m2 LCD Touch Screen 800x480

Chat Now

video

7 Inch TFT Touch Screen 800x480 50 Pin LCD Display 300 Nits

Chat Now

video

720x1600 Touch TFT Display 500 cd/m2 Screen Capacitive Touch Screen

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

7.0'' Inch TFT LCD Touch Screen with 800*480 Resolution IPS Display, 300 cd/m² Brightness, and 50-Pin RGB Interface

This compact 7.0-inch TFT LCD touch screen delivers reliable performance for embedded and industrial applications. Featuring an 800×480 pixel resolution and 300 nits brightness, it provides clear, detailed visuals ideal for user interfaces, control panels, and multimedia displays in standard indoor lighting conditions.

Key Features

7.0-inch IPS display with 170°+ viewing angle
800×480 resolution for sharp image quality
300 cd/m² brightness for indoor visibility
Capacitive touch screen technology
50-pin RGB interface compatibility
Black glass cover lens with anti-glare option
Wide operating temperature: -20°C to 70°C

Technical Specifications

Model Number	DRS070-V1
Display Size	7.0 inches
Resolution	800 × 480 pixels
Brightness	300 cd/m² (nits)
Interface Type	50-pin RGB
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	IPS (Full View / 170°+)
Cover Lens	Black Glass / Anti-glare
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Applications

Industrial control systems, Human-Machine Interfaces (HMI), medical equipment, automotive displays, IoT devices, DIY electronics, and commercial products.

Compatibility & Versatility

Supported by the 50-pin RGB interface, this TFT LCD display offers excellent compatibility with various embedded systems. Its industry-standard temperature range and popular size make it a versatile solution for diverse applications from DIY projects to commercial products.
