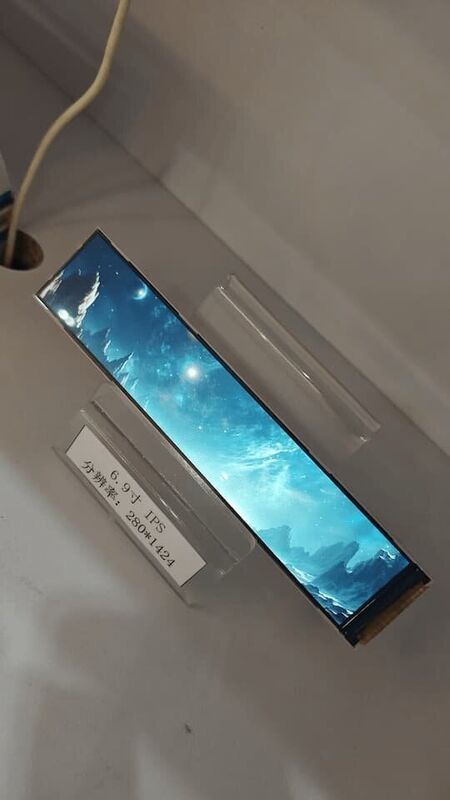

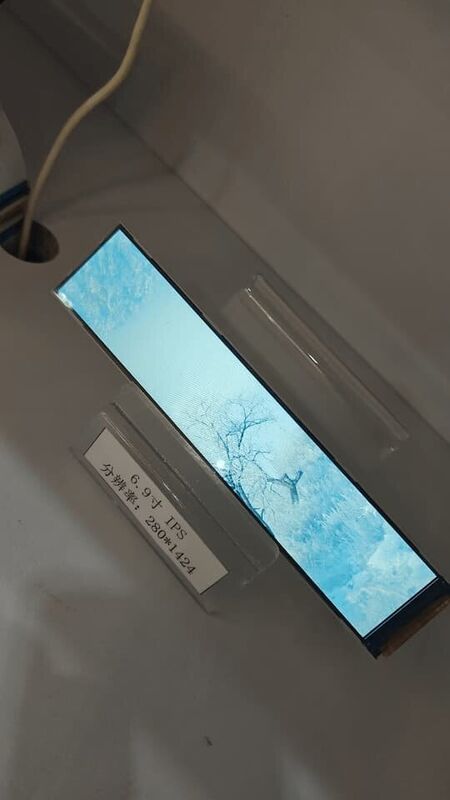

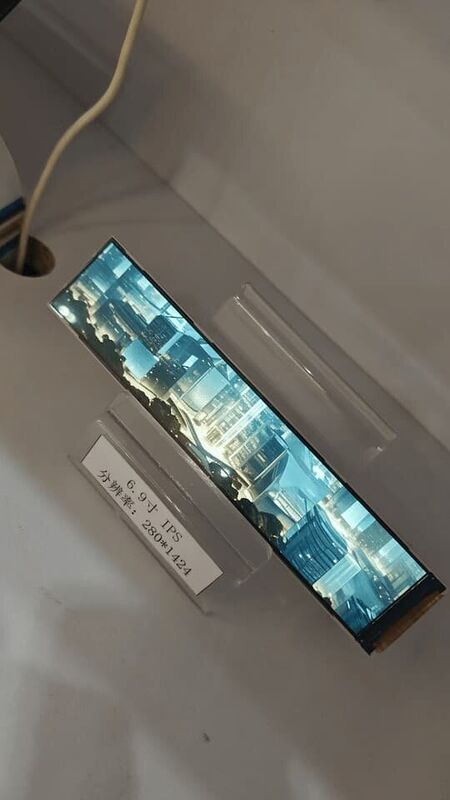

Name: 6.9 Inch 280x1424 LCD Touch Screen Module 350 cd/m2 LCD Screen Panel
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS069-V1
Price: 54.00 USD
Availability: InStock

Home > Products > TFT LCD Display Module >

6.9 Inch 280x1424 LCD Touch Screen Module 350 cd/m2 LCD Screen Panel

6.9 Inch LCD Touch Screen Module

280x1424 LCD Touch Screen Module

350 cd/m2 LCD Screen Panel

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS069-V1

Document:

Sepcification_DRS 070BFW863...V1.pdf

Chat Now

Request A Quote

Product Details

Brightness:

350 Cd/m²

Diagonal Size:

6.9 Inch

Module Dimensions:

38.2(H)*181.47(V)*3.54(D)

Pixel Pitch:

0.028*RGB*0.1424

Interface Type:

MIPI 4lane

Resolution:

280x1424

Highlight:

6.9 Inch LCD Touch Screen Module

280x1424 LCD Touch Screen Module

350 cd/m2 LCD Screen Panel

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

43-65 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

2.95 Inch 480x854 TFT LCD Screen Module 350 cd/m2 LCD Touch Display Module

Chat Now

video

3.95 Inch TFT LCD Display Module 350 cd/m2 Square TFT Display 720x720

Chat Now

video

300 cd/m2 TFT LCD Display Module Display 2.0 Inch 240x320 IPS Display Module

Chat Now

video

1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

6.9 Inch TFT LCD Display module with 280x1424 Resolution and 350 cd/m² Brightness for Consumer Electronics

The 6.9 Inch TFT LCD Display Module is a fully integrated display unit that combines a high-quality TFT LCD screen, driver IC, and interface circuit into a single compact package, specifically designed for embedded systems, industrial control, and smart device applications. This module features high integration, eliminating the need for additional driver circuits and reducing the complexity of R&D and production for manufacturers. It supports multiple interface options (SPI, I2C, RGB), ensuring seamless compatibility with various microcontrollers (MCUs) such as Arduino, Raspberry Pi, STM32, and ESP32. The optional capacitive touch function (G+G structure) provides smooth, accurate touch operation, supporting multi-touch gestures such as tap, slide, and zoom, making it suitable for interactive devices. With a compact design (175.0 × 88.5 × 5.2 mm with capacitive touch), it is easy to integrate into embedded devices with limited space. Manufactured with industrial-grade materials, it offers stable performance and high reliability, suitable for long-term operation in embedded systems, industrial control terminals, and smart home devices. It also supports customizations such as resolution, interface, touch function, and module size to meet the specific needs of different customers.

Note1: The LED driving condition is defined for each module.

Note2: When LCM is operated, the stable forward current should be inputted. And forward voltage is for reference only.

Note3: Optical performance should be evaluated at Ta=25℃ When LED is driven at high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

Note4: The LED driving condition is defined for each LED module.

Technical Specifications

Model Number	DRS069-V1
Display Size	6.9 inches
Resolution	280x1424
Brightness	350 cd/m² (nits)
Interface Type	MIPI 4lane
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	170°+ (Full View)
Cover Lens	Black Glass / Anti-glare IPS
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Product Advantages

High Integration: Integrated driver IC and interface circuit, plug-and-play installation, eliminating the need for additional driver components and reducing R&D and production cycles.
Flexible Compatibility: Supports SPI/I2C/RGB interfaces, compatible with various MCUs and embedded platforms, ensuring wide applicability.
Optional Touch Function: Capacitive/resistive touch optional, with smooth touch response and multi-touch support, meeting interactive device needs.
Compact Design: Thin thickness and small module size, easy to integrate into embedded devices with limited space, improving design flexibility.
Customizable: Supports customization of resolution, interface, touch function, and module size, tailored to specific customer requirements and application scenarios.

Application Fields

This 6.9 inch TFT LCD display module is widely used in embedded systems, industrial control, and smart device fields, including: embedded control terminals, Raspberry Pi projects, Arduino-based devices, smart home control panels, medical handheld devices, industrial HMIs (Human-Machine Interfaces), small-sized smart instruments, smart wearables, and portable testing equipment. Its high integration and plug-and-play design make it suitable for customers who need to quickly integrate display functions into their products, reducing R&D costs and time-to-market, while its flexible customization options meet the specific needs of different application scenarios.
