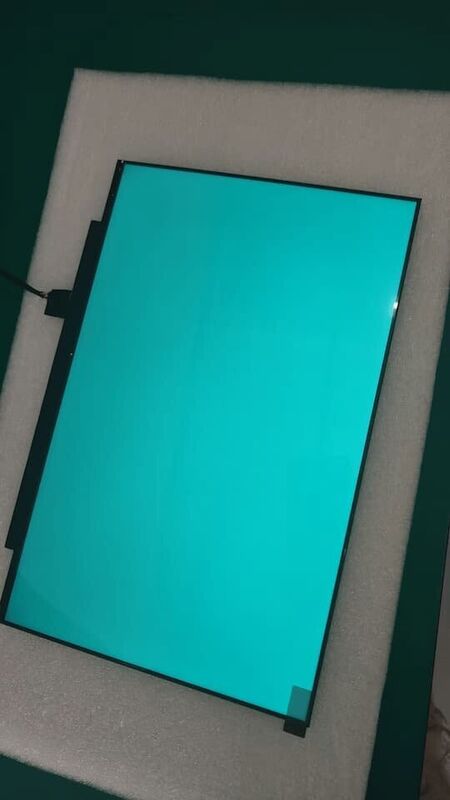

Name: 1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: 133FHB-N81
Price: 53.00 USD
Availability: InStock

Home > Products > TFT LCD Display Module >

1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight

1920x1080 TFT LCD Module

30pin eDP Display

eDP Display 13.3 Inch

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

133FHB-N81

Document:

B8 Product Spec QV133FHB-N8...2.pptx

Chat Now

Request A Quote

Product Details

Model:

QV133FHB-N81-8D32

Size:

13.3” Diagonal

Resolution:

1920×1080 (FHD)

Panel Type:

A-Si TFT-LCD, CELL, FOB

Active Area:

293.76 (W) × 165.24 (H) Mm

Interface:

EDP 30pin

Outline Dim:

307.6×183.05×5.5mm

Viewing Angle:

85/85/85/85 (L/R/U/D)

Refresh Rate:

60Hz

Input Voltage:

3.3V (signal)

Highlight:

1920x1080 TFT LCD Module

30pin eDP Display

eDP Display 13.3 Inch

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

39-67 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

2.95 Inch 480x854 TFT LCD Screen Module 350 cd/m2 LCD Touch Display Module

Chat Now

video

3.95 Inch TFT LCD Display Module 350 cd/m2 Square TFT Display 720x720

Chat Now

video

300 cd/m2 TFT LCD Display Module Display 2.0 Inch 240x320 IPS Display Module

Chat Now

video

1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

QV133FHB-N81-8D32 | 13.3” FHD TFT LCD Module | eDP 30pin WLED Backlight

The QV133FHB-N81-8D32 is a fully assembled 13.3-inch TFT LCD module (LCM) integrating a BOE original LCD panel, WLED backlight unit, and eDP 30pin interface circuit. It features Full HD 1920×1080 resolution, 600cd/m² high brightness, and 1000:1 contrast ratio, delivering vibrant 16.7M-color visuals. The module’s plug-and-play design simplifies integration for notebooks, industrial HMIs, and embedded systems, with stable performance across 0°C to +50°C operating temperatures.

Application Fields

Notebook & laptop OEM/ODM projects
Industrial HMI (Human-Machine Interface) panels
Embedded systems (medical, POS, kiosks)
Portable gaming & multimedia devices

Advantages

Plug-and-Play Integration: Assembled module saves R&D & assembly time
High Brightness & Clarity: 600cd/m² brightness for indoor/outdoor visibility
Long Lifespan: WLED backlight with 50,000 hours of stable operation
Wide Compatibility: eDP 30pin interface supports mainstream embedded controllers
