Name: 15.6 Inch FHD TFT Display 1920x1080 LCD Screen Module 300 cd/m2 eDP 30pin WLED Backlight
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: NE156FH1
Price: 53.00 USD
Availability: InStock

Home > Products > TFT LCD Display Module >

15.6 Inch FHD TFT Display 1920x1080 LCD Screen Module 300 cd/m2 eDP 30pin WLED Backlight

15.6 Inch FHD TFT Display

FHD TFT Display 1920x1080

LCD Screen Module 300 cd/m2

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

NE156FH1

Document:

YSJ-NE156FH1-B42 .pdf

Chat Now

Request A Quote

Product Details

Model:

YSJ-NE156FH1-B42

Size:

15.6” Diagonal

Resolution:

1920×1080 (FHD)

Panel Type:

A-Si TFT-LCD, CELL, FOB

Active Area:

293.76 (W) × 165.24 (H) Mm

Interface:

EDP 30pin (1 Lane)

Outline Dim:

359.5×223.8×6.5mm

Viewing Angle:

85/85/85/85 (L/R/U/D)

Brightness:

300 Cd/m² (Typ.)

Input Voltage:

3.3V (signal)

Highlight:

15.6 Inch FHD TFT Display

FHD TFT Display 1920x1080

LCD Screen Module 300 cd/m2

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

39-67 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

2.95 Inch 480x854 TFT LCD Screen Module 350 cd/m2 LCD Touch Display Module

Chat Now

video

3.95 Inch TFT LCD Display Module 350 cd/m2 Square TFT Display 720x720

Chat Now

video

300 cd/m2 TFT LCD Display Module Display 2.0 Inch 240x320 IPS Display Module

Chat Now

video

1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

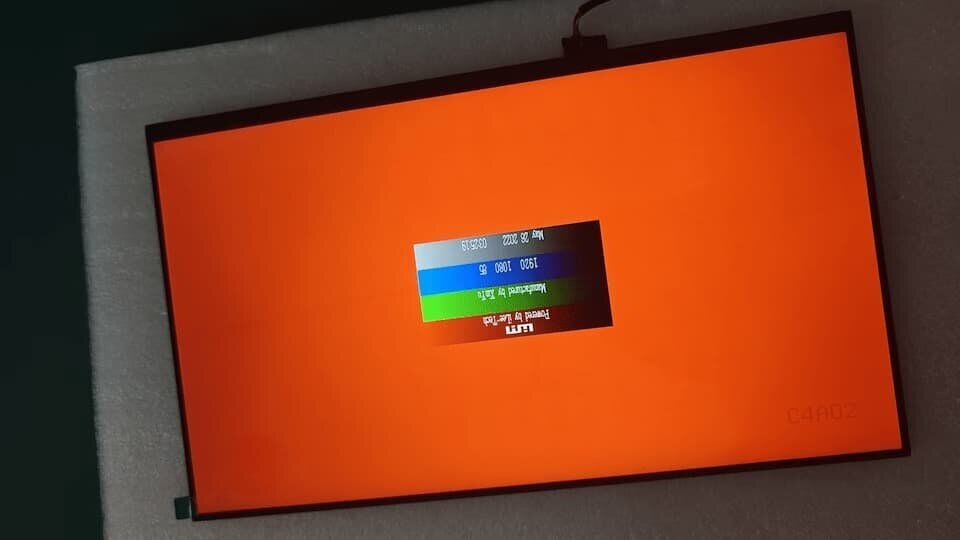

YSJ-NE156FH1-B42 | 15.6” FHD TFT LCD Module | eDP 30pin WLED Backlight

The YSJ-NE156FH1-B42 is a fully assembled 15.6-inch TFT LCD module (LCM) integrating an original LCD panel, WLED backlight unit, and eDP 30pin interface circuit. It delivers Full HD 1920×1080 resolution, 300 cd/m² brightness, and 800:1 contrast ratio, producing vibrant 16.7M-color imagery. Designed for plug-and-play integration, this module simplifies deployment in notebooks, industrial HMIs, and embedded systems. The WLED backlight offers 30,000 hours of lifespan, ensuring stable long-term operation in 0°C to +50°C environments.

Application Fields

Notebook & laptop OEM/ODM projects
Industrial HMI (Human-Machine Interface) panels
Embedded systems (medical, POS, kiosks)
Portable multimedia devices

Advantages

Plug-and-Play Integration: Saves R&D and assembly time
Stable WLED Backlight: 30,000hrs lifespan for reliable use
Wide Compatibility: eDP 30pin supports mainstream embedded controllers
Factory-Assembled Quality: Rigorous testing for consistent performance
