Name: 14.0 Inch TFT LCD Module Display 1920x1200 LCD Screen Modules 400 cd/m2 eDP 30pin WLED Backlight
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: B140UAN02.1
Price: 52.00 USD
Availability: InStock

Home > Products > TFT LCD Display Module >

14.0 Inch TFT LCD Module Display 1920x1200 LCD Screen Modules 400 cd/m2 eDP 30pin WLED Backlight

14.0 Inch TFT LCD Module Display

TFT LCD Module Display 1920x1200

LCD Screen Modules 400 cd/m2

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

B140UAN02.1

Document:

B140UAN02-.pdf

Chat Now

Request A Quote

Product Details

Model:

B140UAN02.1

Size:

14.0” Diagonal

Resolution:

1920×1200 (WUXGA)

Panel Type:

A-Si TFT-LCD, CELL, FOB

Active Area:

293.76 (W) × 165.24 (H) Mm

Interface:

EDP 30pin (2 Lanes)

Outline Dim:

306.59×197.45×4.5mm

Viewing Angle:

85/85/85/85 (L/R/U/D)

Brightness:

300 Cd/m² (Typ.)

Input Voltage:

3.3V (signal)

Highlight:

14.0 Inch TFT LCD Module Display

TFT LCD Module Display 1920x1200

LCD Screen Modules 400 cd/m2

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

37-67 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

2.95 Inch 480x854 TFT LCD Screen Module 350 cd/m2 LCD Touch Display Module

Chat Now

video

3.95 Inch TFT LCD Display Module 350 cd/m2 Square TFT Display 720x720

Chat Now

video

300 cd/m2 TFT LCD Display Module Display 2.0 Inch 240x320 IPS Display Module

Chat Now

video

1920x1080 TFT LCD Module 30pin eDP Display 13.3 Inch WLED Backlight

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

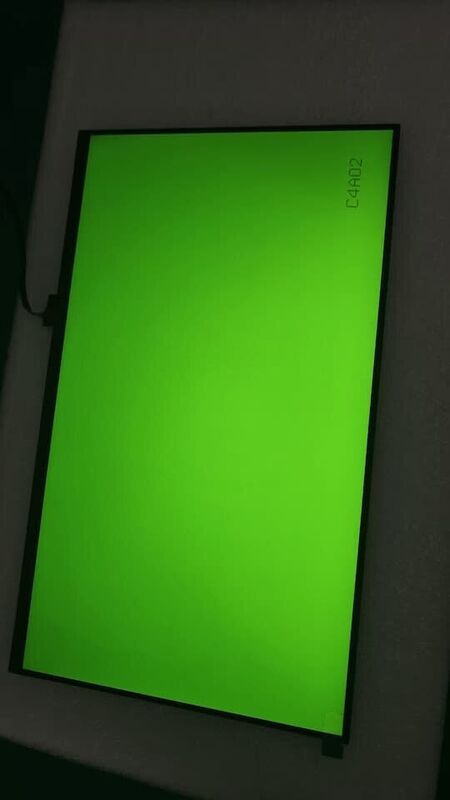

B140UAN02.1 | 14.0” WUXGA TFT LCD Module | eDP 30pin WLED Backlight

The B140UAN02.1 is a fully assembled 14.0-inch TFT LCD module (LCM) integrating an AUO original LCD panel, WLED backlight unit, and eDP 30pin interface circuit. It features WUXGA 1920×1200 resolution, 400cd/m² high brightness, and 1000:1 contrast ratio, delivering vibrant 16.7M-color visuals. The module’s plug-and-play design simplifies integration for notebooks, industrial HMIs, and embedded systems, with stable performance across 0°C to +50°C operating temperatures. The WLED backlight offers a long lifespan, ensuring reliable daily use.

Application Fields

Notebook & laptop OEM/ODM projects
Industrial HMI (Human-Machine Interface) panels
Embedded systems (medical, POS, kiosks)
Portable multimedia devices

Advantages

Plug-and-Play Integration: Saves R&D and assembly time
High Brightness & Clarity: 400cd/m² brightness for indoor visibility
Long Lifespan: WLED backlight with 30,000 hours of stable operation
Wide Compatibility: eDP 30pin supports mainstream embedded controllers
