Name: 300 cd/m2 TFT LCD Display Compact 5 Inch TFT Touch Screen 800x480
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS050-V1
Availability: InStock

Home > Products > TFT LCD Display >

300 cd/m2 TFT LCD Display Compact 5 Inch TFT Touch Screen 800x480

300 cd/m2 TFT LCD Display

Compact 5 Inch TFT Touch Screen

5 Inch TFT Touch Screen 800x480

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS050-V1

Chat Now

Request A Quote

Product Details

Brightness(cd/m²):

300

Interface:

40p RGB

Resolution:

800 × 480

Supply Ability:

500,000pcs Per Week

Delivery Time:

5-8 Working Days

Minimum Order Quantity:

100pcs

Highlight:

300 cd/m2 TFT LCD Display

Compact 5 Inch TFT Touch Screen

5 Inch TFT Touch Screen 800x480

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Please contact us for latest price

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

800x480 7 Inch TFT Screen 300 cd/m2 Industrial LCD Displays For Industrial Applications

Chat Now

video

300 cd/m2 TFT LCD Display Compact 5 Inch TFT Touch Screen 800x480

Chat Now

video

5.0 Inch TFT And IPS Display 300 Nits RGB Displays For Industrial Automotive Medical

Chat Now

video

480x272 TFT LCD Display 300 cd/m2 5 Inch LCD Display For Industrial Applications

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

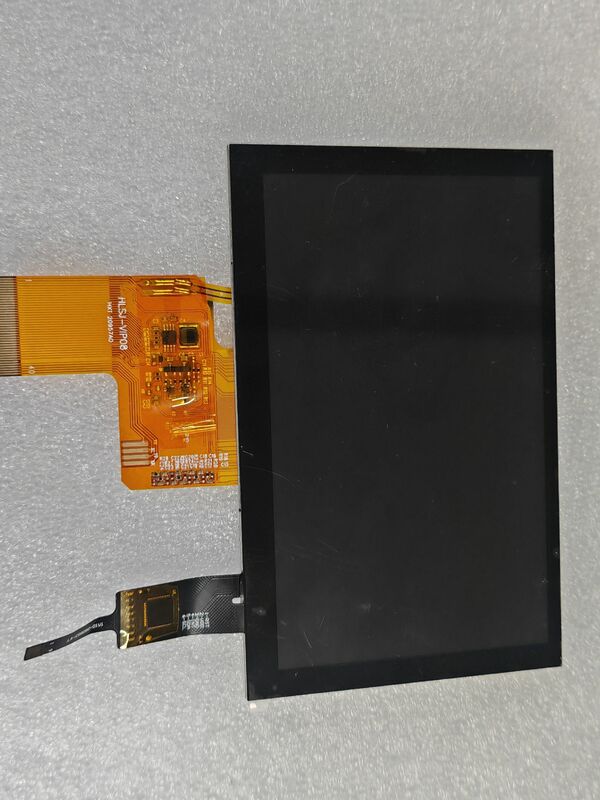

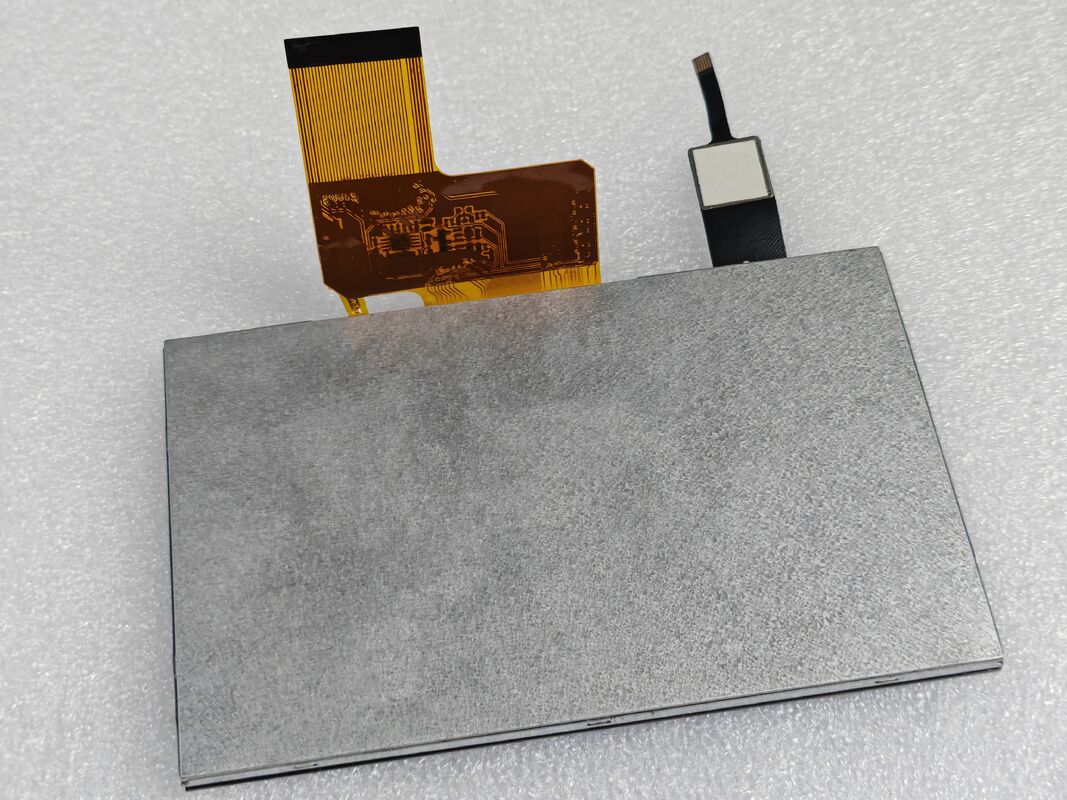

5.0'' Inch TFT LCD Display with 800 × 480 Resolution and 300 cd/m² Brightness for Industrial Applications

This 5.0-inch TFT LCD touch screen is a compact and widely used display solution for embedded and industrial applications. It features a resolution of 480 × 272 pixels, delivering clear and detailed visuals suitable for user interfaces, control panels, and multimedia display. With a brightness of 300 nits, the screen performs reliably in indoor environments, offering excellent visibility under standard lighting conditions.

Key Features

5.0-inch TFT LCD display with 800 × 480 resolution

Capacitive touch screen technology

40-pin RGB interface for versatile connectivity

300 cd/m² brightness for clear indoor visibility

Black glass cover lens with anti-glare option

Wide 170°+ viewing angle

Extended temperature range: -20°C to 70°C operation

Technical Specifications

Model Number	DRS050-V1
Display Size	5.0 inches
Resolution	800 × 480pixels
Brightness	300 cd/m² (nits)
Interface Type	40-pin RGB
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	170°+ (Full View)
Cover Lens	Black Glass / Anti-glare
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Applications

Industrial Control • HMI Systems • Medical Devices • Automotive Displays • IoT Applications • DIY Electronics • Commercial Products

Supported by the 40-pin RGB interface, this versatile TFT LCD display is compatible with numerous applications. The extended temperature range and industry-standard compliance make it perfect for demanding environments across industrial, automotive, and medical sectors.
