Name: 14.0 Inch WUXGA Display 1920x1200 LCD Screen Displays B140UAN02.1
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: B140UAN02.1
Price: 52.00 USD
Availability: InStock

Home > Products > TFT LCD Display >

14.0 Inch WUXGA Display 1920x1200 LCD Screen Displays B140UAN02.1

14.0 Inch WUXGA Display

WUXGA Display 1920x1200

1920x1200 LCD Screen Displays

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

B140UAN02.1

Document:

B140UAN02-.pdf

Chat Now

Request A Quote

Product Details

Model:

B140UAN02.1

Size:

14.0” Diagonal

Resolution:

1920×1200 (WUXGA)

Panel Type:

A-Si TFT-LCD, CELL, FOB

Active Area:

293.76 (W) × 165.24 (H) Mm

Interface:

EDP 30pin (2 Lanes)

Outline Dim:

306.59×197.45×4.5mm

Viewing Angle:

85/85/85/85 (L/R/U/D)

Brightness:

300 Cd/m² (Typ.)

Input Voltage:

3.3V (signal)

Highlight:

14.0 Inch WUXGA Display

WUXGA Display 1920x1200

1920x1200 LCD Screen Displays

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

37-67 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

800x480 7 Inch TFT Screen 300 cd/m2 Industrial LCD Displays For Industrial Applications

Chat Now

video

300 cd/m2 TFT LCD Display Compact 5 Inch TFT Touch Screen 800x480

Chat Now

video

5.0 Inch TFT And IPS Display 300 Nits RGB Displays For Industrial Automotive Medical

Chat Now

video

480x272 TFT LCD Display 300 cd/m2 5 Inch LCD Display For Industrial Applications

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

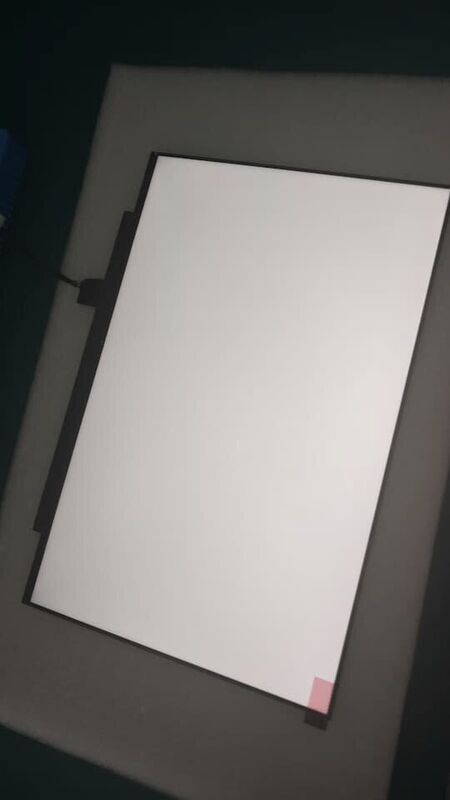

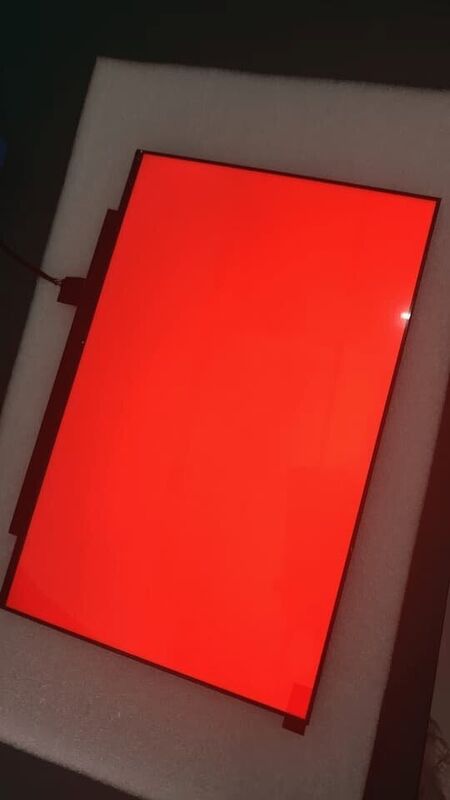

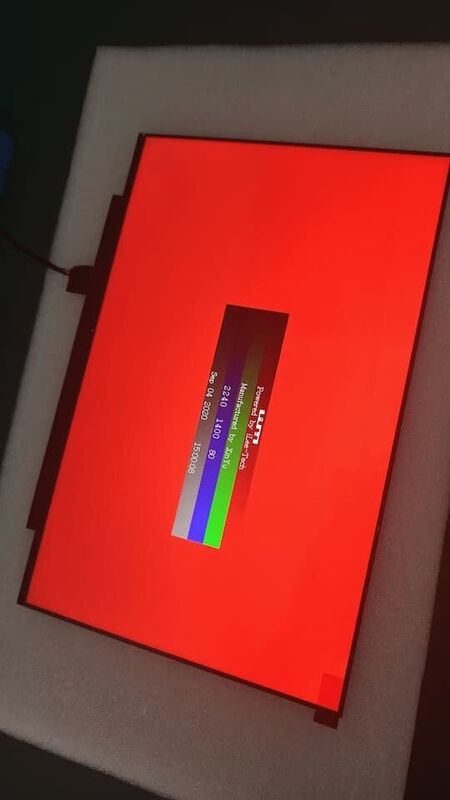

B140UAN02.1 | 14.0” TFT LCD Display Panel | AUO Original Bare Screen

The B140UAN02.1 is a 14.0-inch LTPS TFT-LCD bare panel manufactured by AUO, featuring a WUXGA 1920×1200 resolution and 161.73PPI pixel density. As a core LCD cell without a driver board or touch overlay, it delivers sharp visuals with 400cd/m² typical brightness, 1000:1 contrast ratio, and 16.7 million color depth. The eDP 30pin (2 lanes) interface ensures low-power, high-speed signal transmission, while the 4.5mm ultra-thin profile suits slim notebook and embedded device designs. Supplied as a bare panel, it serves as a cost-effective core display component for integration projects.

Application Fields

Notebook & laptop replacement screens
Entry-level embedded display projects
Consumer electronics bare display integration
Educational device LCD panel upgrades

Advantages

Original AUO Quality: Reliable performance with strict factory testing
WUXGA High Resolution: 1920×1200 for sharp, detailed images
Slim & Lightweight: 4.5mm thickness ideal for portable devices
Cost-Effective: Bare panel design reduces integration costs
