Name: 15.6 Inch Full HD LCD Display 1920x1080 EDP Screen 300 cd/m2
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: NE156FH1
Price: 53.00 USD
Availability: InStock

Home > Products > TFT LCD Display >

15.6 Inch Full HD LCD Display 1920x1080 EDP Screen 300 cd/m2

15.6 Inch Full HD LCD Display

Full HD LCD Display 1920x1080

EDP Screen 300 cd/m2

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

NE156FH1

Document:

YSJ-NE156FH1-B42 .pdf

Chat Now

Request A Quote

Product Details

Model:

YSJ-NE156FH1-B42

Size:

15.6” Diagonal

Resolution:

1920×1080 (FHD)

Panel Type:

A-Si TFT-LCD, CELL, FOB

Active Area:

293.76 (W) × 165.24 (H) Mm

Interface:

EDP 30pin (1 Lane)

Outline Dim:

359.5×223.8×6.5mm

Viewing Angle:

85/85/85/85 (L/R/U/D)

Brightness:

300 Cd/m² (Typ.)

Input Voltage:

3.3V (signal)

Highlight:

15.6 Inch Full HD LCD Display

Full HD LCD Display 1920x1080

EDP Screen 300 cd/m2

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

39-67 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

800x480 7 Inch TFT Screen 300 cd/m2 Industrial LCD Displays For Industrial Applications

Chat Now

video

300 cd/m2 TFT LCD Display Compact 5 Inch TFT Touch Screen 800x480

Chat Now

video

5.0 Inch TFT And IPS Display 300 Nits RGB Displays For Industrial Automotive Medical

Chat Now

video

480x272 TFT LCD Display 300 cd/m2 5 Inch LCD Display For Industrial Applications

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

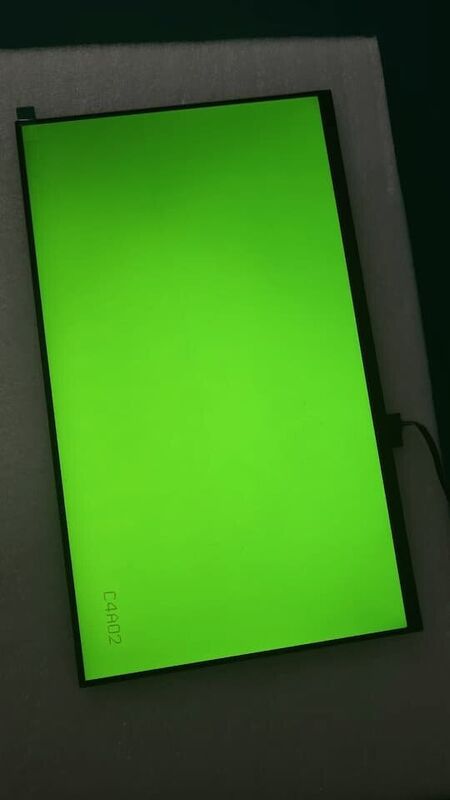

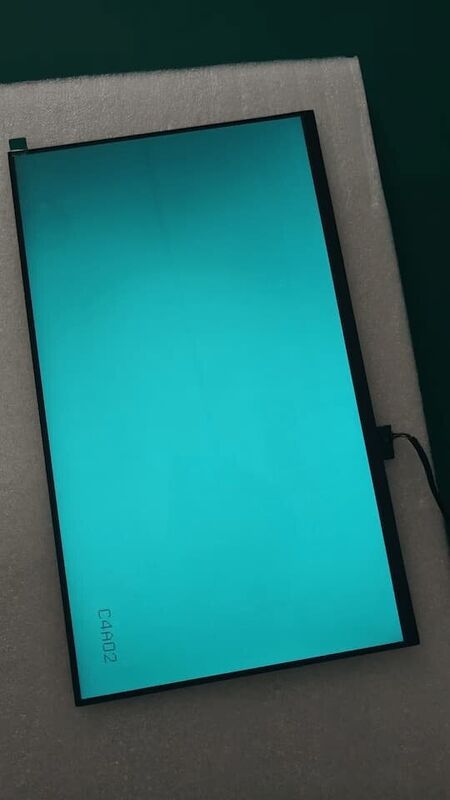

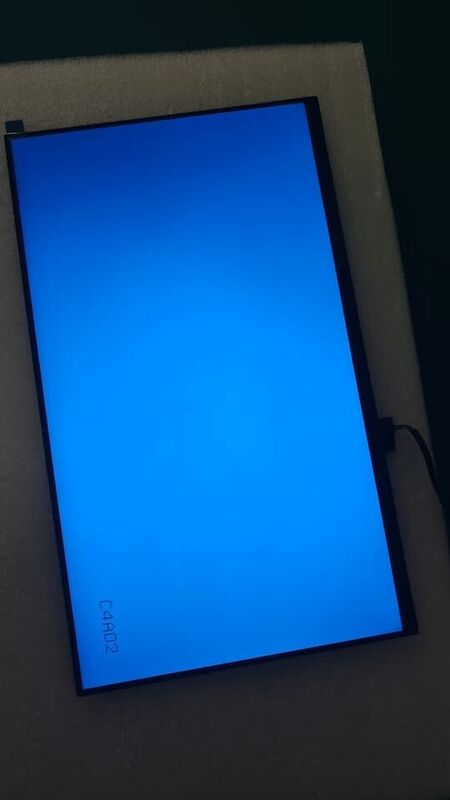

YSJ-NE156FH1-B42 | 15.6” FHD TFT LCD Display Panel | eDP 30pin Bare Screen

The YSJ-NE156FH1-B42 is a 15.6-inch a-Si TFT-LCD bare panel designed for notebook and embedded display integration. It features a Full HD 1920×1080 resolution with 141PPI, delivering sharp, clear visuals. With 300 cd/m² typical brightness, 800:1 contrast ratio, and 16.7 million colors, this bare LCD cell ensures reliable performance in standard indoor environments. The eDP 30pin interface enables low-power, high-speed connectivity, while the 6.5mm ultra-thin profile fits slim notebook designs. Supplied as a bare panel without driver board or touch, it serves as a cost-effective core display component.

Application Fields

Notebook & laptop replacement screens
Entry-level embedded display projects
Consumer electronics bare display integration
Educational device LCD panel upgrades

Advantages

Cost-Effective Bare Panel: Reduces integration costs for mass production
FHD Visual Clarity: 1920×1080 resolution for sharp daily use
Slim & Lightweight: 6.5mm thickness ideal for portable devices
Low-Power eDP Interface: Optimized for notebook battery efficiency
