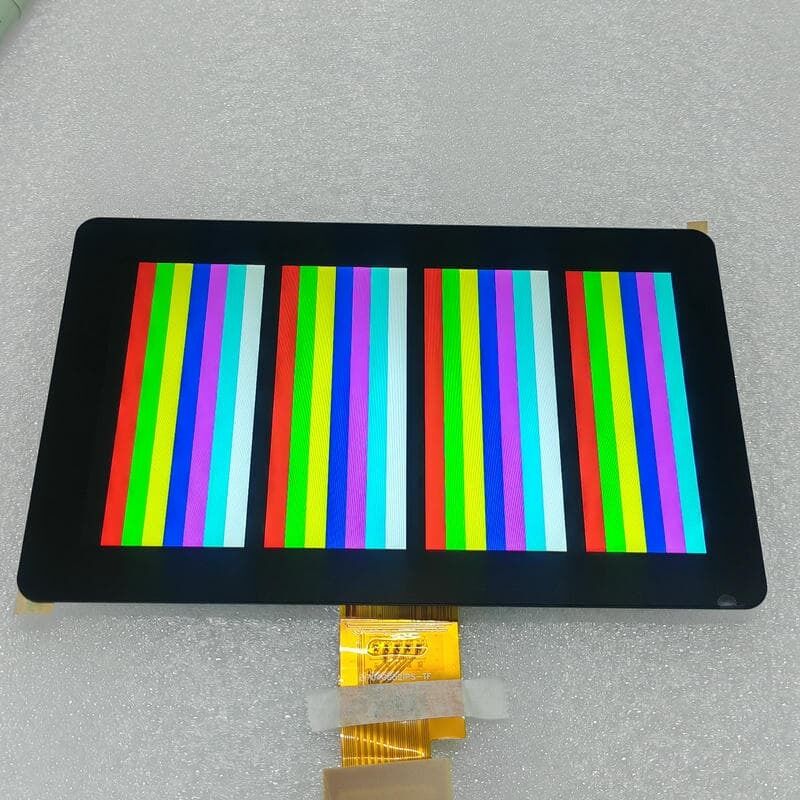

Name: 7 Inch LCD TFT Screen 50 Pin Industrial LCD Display 800x480
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS070-V1
Availability: InStock

Home > Products > LCD TFT Screen >

7 Inch LCD TFT Screen 50 Pin Industrial LCD Display 800x480

7 Inch LCD TFT Screen

50 Pin Industrial LCD Display

Industrial LCD Display 800x480

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS070-V1

Chat Now

Request A Quote

Product Details

Name:

LCD TFT Screen

Brightness(cd/m²):

300

Interface:

50p RGB

Resolution:

800*480

Supply Ability:

500,000pcs Per Week

Delivery Time:

5-8 Working Days

Minimum Order Quantity:

100pcs

Highlight:

7 Inch LCD TFT Screen

50 Pin Industrial LCD Display

Industrial LCD Display 800x480

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

Please contact us for latest price

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

6.9 Inch LCD TFT Display 280x1424 Resolution High Brightness LCD Display 350 cd/m2

Chat Now

video

2.4 Inch LCD TFT Screen 240x320 IPS Display Panel Normally Black

Chat Now

video

2.95 Inch IPS Display Screen Wide View TFT LCD Display 480X854 Resolution

Chat Now

video

350 cd/m2 LCD TFT Screen 3.95 Inch Square Display Screen 720x720 RGB

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

7 INCH Industrial IPS TFT LCD Touch Screen 800×480 50-Pin RGB Capacitive

This industrial IPS TFT LCD capacitive touch screen is a high-definition display module with 800×480 resolution and 300 cd/m² high brightness, delivering clear and stable images even in bright environments. Adopting IPS full-view angle technology, it maintains consistent color and contrast from all directions, ensuring excellent visibility for industrial and embedded applications. Equipped with a 50-pin RGB interface and capacitive touch panel, it supports fast and accurate touch response, stable signal transmission, and easy system integration.

Key Features

Name: IPS TFT LCD Capacitive Touch Screen
Resolution: 800×480
Brightness: 300 cd/m²
Interface: 50-Pin RGB
Touch Type: Capacitive Touch
Viewing Angle: IPS Full View Angle
Application: Industrial Control, Display Terminal
Custom Service: FPC, Backlight, Bezel, Touch
Panel Type: TFT IPS
Packaging: Anti-static + Foam Box

Technical Specifications

Model Number	DRS070-V1
Display Size	7.0 inches
Resolution	800 × 480 pixels
Brightness	300 cd/m² (nits)
Interface Type	50-pin RGB
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	IPS (Full View / 170°+)
Cover Lens	Black Glass / Anti-glare
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	Anti-static + Foam Box
Minimum Order Quantity	100 pieces

Applications

Industrial control systems, Human-Machine Interfaces (HMI), medical equipment, automotive displays, IoT devices, DIY electronics, and commercial products.

Compatibility & Versatility

It features stable performance, low power consumption, and long service life, making it widely used in industrial control panels, medical devices, automotive displays, smart terminals, and instrumentation equipment. Customization is available for FPC, backlight, bezel, and touch structure, with corresponding tooling costs based on specific requirements.

In-stock samples are shipped within 3 days after payment. Small-batch orders take 2–3 weeks, large-batch orders take 3–4 weeks. Our sales team confirms all details before shipment. Technical documents including datasheets, initialization code, drawings, and test reports are provided upon request
