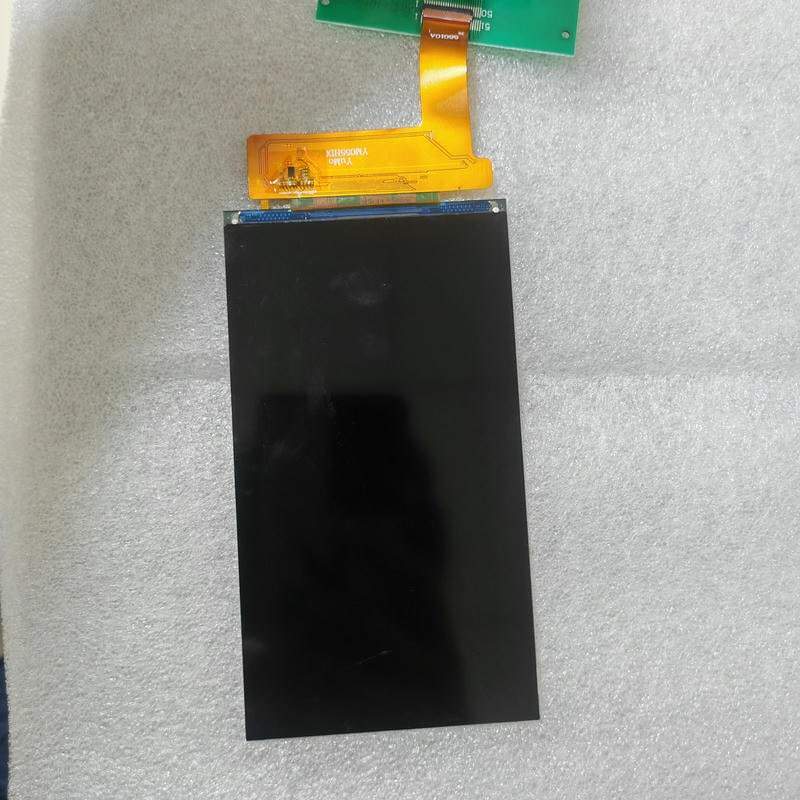

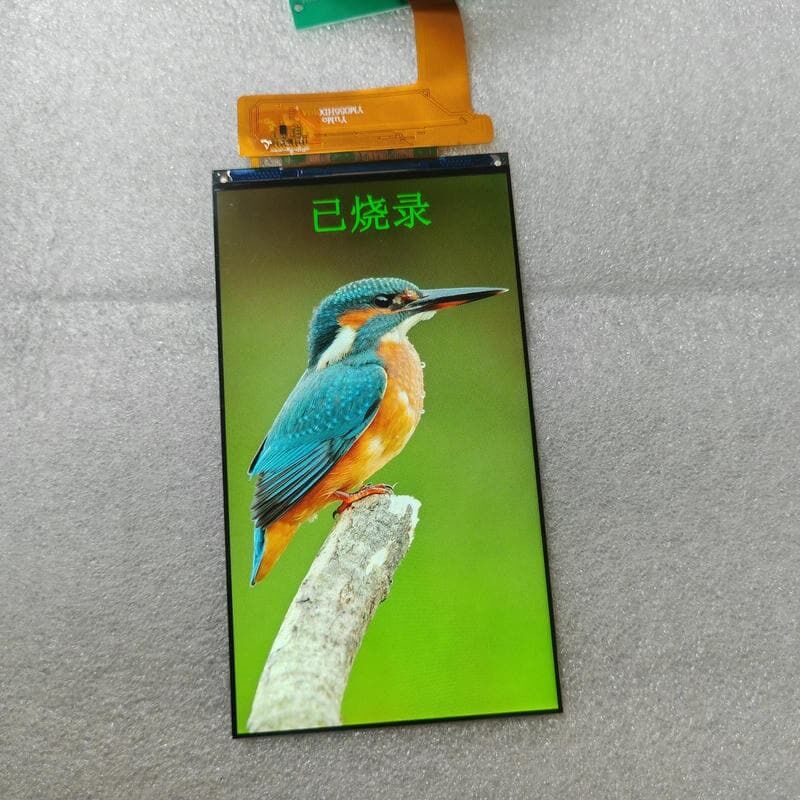

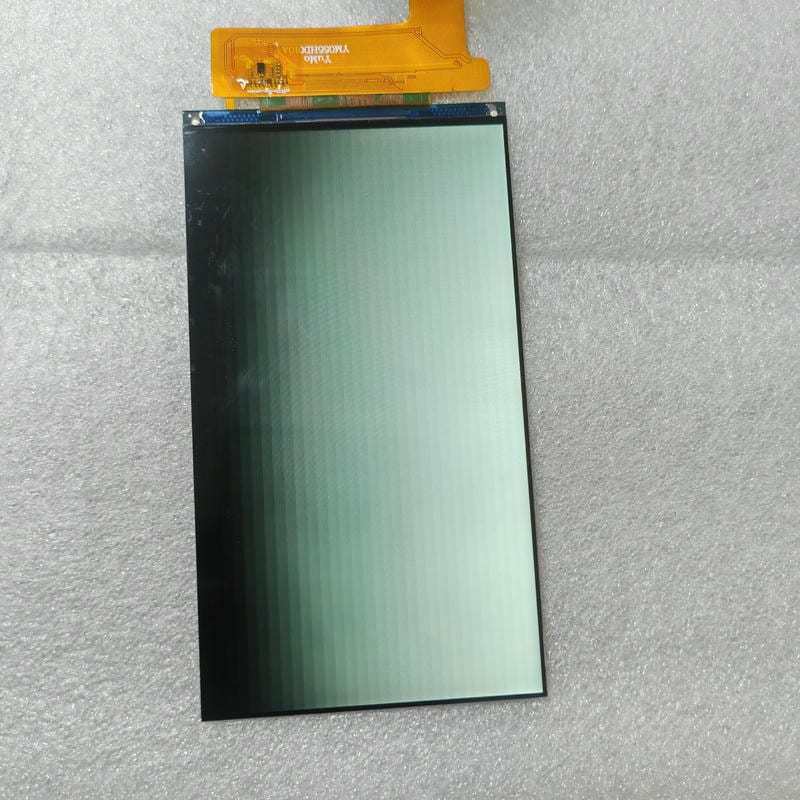

1080x1920 TFT LCD Screens 5.5 Inch MIPI LCD Display 500 cd/m2 For High Definition Display

1080x1920 TFT LCD Screens 5.5 Inch MIPI LCD Display 500 cd/m2 For High Definition Display

1080x1920 TFT LCD Screens

TFT LCD Screens 5.5 Inch

MIPI LCD Display 500 cd/m2

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS055-V1

Document:

YM055HD010Apdf.pdf

Chat Now
Request A Quote
Product Details
Name:
TFT LCD Screens
Brightness(cd/m²):
500
Interface:
MIPI
Resolution:
1080x1920
Supply Ability:
500,000pcs Per Week
Delivery Time:
5-8 Working Days
Minimum Order Quantity:
100pcs
Highlight:

1080x1920 TFT LCD Screens

,

TFT LCD Screens 5.5 Inch

,

MIPI LCD Display 500 cd/m2

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
12-30 USD
Packaging Details
20cm * 30cm * 40cm
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
500,000pcs per week
Product Description
5.5-inch TFT LCD Screen with 1080x1920 Resolution, 500 cd/m² Brightness, and MIPI Interface for High-Definition Display
DRS 5.5 LCD TFT SCREEN is a cost-effective basic color LCD screen, adopting TFT active matrix technology. It features core advantages of high brightness and high contrast, with clear and delicate images and true and natural color reproduction. The screen adopts a standardized size design, with a thin and light thickness and strong adaptability. It can be quickly integrated without complex debugging, supports various common display modes, has a fast response speed, no trailing or afterimages, and meets daily basic display needs. The product is exquisitely crafted, with high stability and low power consumption. It is suitable for various devices that have basic requirements for display effects and pursue cost-effectiveness. It has outstanding cost performance, and more preferential policies are available for bulk purchases.
Technical Specifications
Model Number DRS055-V1
Display Size 5.5inches
Resolution 1080x1920 pixels
Brightness 500 cd/m² (nits)
Interface Type MiPi
Touch Screen Capacitive / CTP Resistive Touch
Viewing Angle 170°+ (Full View)
Cover Lens Black Glass / Anti-glare IPS
Operation Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Packing Size 20cm × 30cm × 40cm
Minimum Order Quantity 100 pieces
Technical Features
  • MIPI interface for versatile connectivity and easy integration
  • It is suitable for various devices that have basic requirements for display effects and pursue cost-effectiveness
  • High-quality black glass cover lens with anti-glare option
  • Power Consumption ≤3.5W (Working State)
  • Response Time 5ms (Typ)
  • Compact form factor ideal for space-constrained applications
Applications
    • mainly applied to entry-level tablets,
    • simple handheld terminals, portable game consoles
    • small digital photo frames, household smart control panels
    • simple medical auxiliary displays (non-core diagnostic purposes)
    • Measurement Instruments: Precision measuring equipment, digital display meters
mainly applied to entry-level tablets, simple handheld terminals, portable game consoles, small digital photo frames, household smart control panels, low-end in-vehicle auxiliary display devices, children's early education machines, simple medical auxiliary displays (non-core diagnostic purposes), household small monitoring equipment and other scenarios. It is suitable for various civil and light industrial products that have moderate requirements for display performance and focus on cost control.
