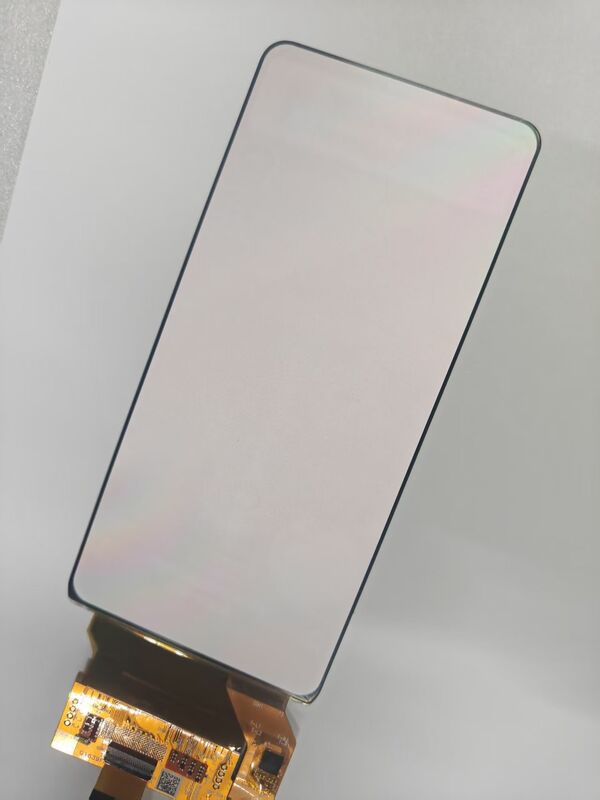

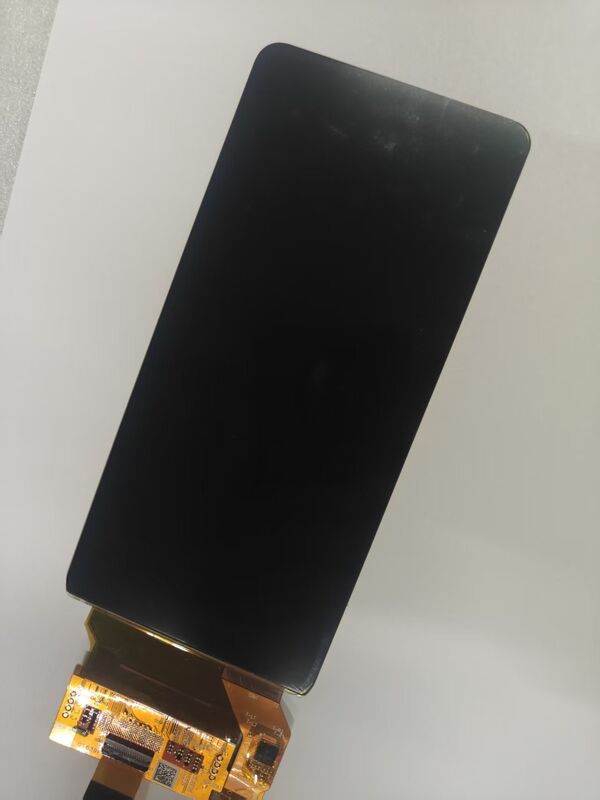

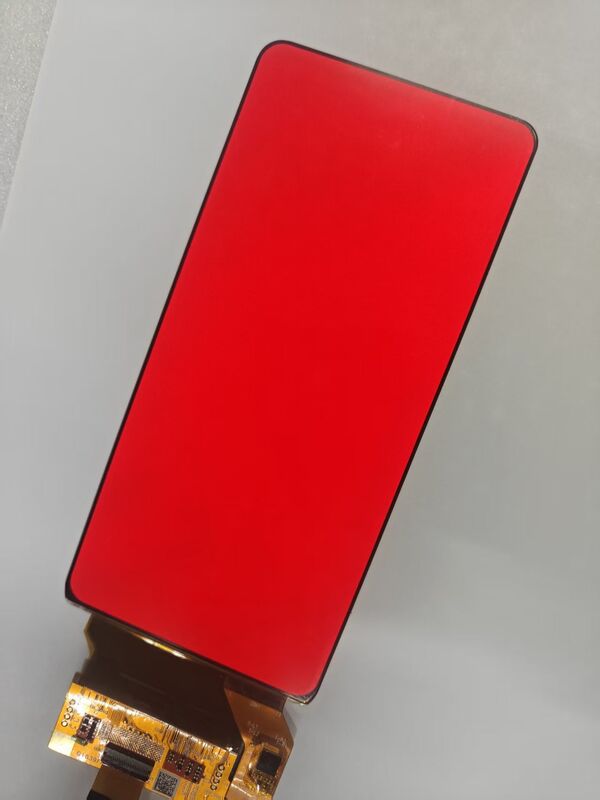

6.39 Inch FHD AMOLED TFT Screen | Mobile Phone Basic Display Panel BE02C639B1H2Z1-01

6.39 Inch FHD AMOLED TFT Screen | Mobile Phone Basic Display Panel BE02C639B1H2Z1-01

6.39 inch FHD AMOLED TFT screen

mobile phone display panel

LCD TFT screen with warranty

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

BE02C639B1H2Z1-01

Chat Now
Request A Quote
Product Details
Product Model:
BE02C639B1H2Z1-01
Display Size:
6.39 Inch
Display Type:
FHD AMOLED TFT
Main Interface:
MIPI DSI
Touch IC:
CST148
General Dimension Tolerance:
±0.20
MIPI Tx Initialize Time (tINIT_MASTER):
Min 10 Ms
MIPI Rx Initialize Time (tINIT_SLAVE):
Min 4 Ms
Internal Delay Time:
Min 500 μs
Environmental Standard:
RoHS, Halogen Free
Highlight:

6.39 inch FHD AMOLED TFT screen

,

mobile phone display panel

,

LCD TFT screen with warranty

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
15-20USD
Packaging Details
20cm * 30cm * 40cm
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
500,000pcs per week
Product Description

Product Overview (Google SEO Description, 120-160 chars Meta + Long Description)


Meta Description: 6.39" FHD AMOLED TFT screen for mainstream mobile phones, built with MIPI DSI interface and CST148 TP IC. RoHS & Halogen Free, stable power-up timing, ideal for consumer handheld devices.

Full Introduction: This 6.39-inch FHD AMOLED TFT screen is a cost-effective consumer-grade basic display panel, model BE02C639B1H2Z1-01. Adopting mature LTPS process and standard MIPI DSI transmission protocol, it supports complete power-on/power-off timing sequences and anti-interference data recovery functions. Equipped with 0.05mm thick conductive cloth and CST148 touch controller, the product meets global RoHS and Halogen-free environmental standards. With uniform dimensional tolerance (±0.20mm) and R0.20 corner radius, it is a reliable replacement and standard matching display for ordinary smartphones.

#LCDDisplay #TFTScreen #EmbeddedTech #SmartDevices#Automotive Products #Industrial control

 Application Fields

  • Entry-level & mid-range smartphones
  • Portable handheld consumer electronics
  • Standard mobile terminal replacement screens
  • Lightweight wearable auxiliary displays


Product Advantages


  • Cost-effective consumer-grade solution, stable mass production performance
  • Standard MIPI interface, easy compatibility with mainstream mobile motherboards
  • Strict environmental certification, compliant with EU consumer electronics regulations
  • Complete data break recovery function, low signal loss in daily use
