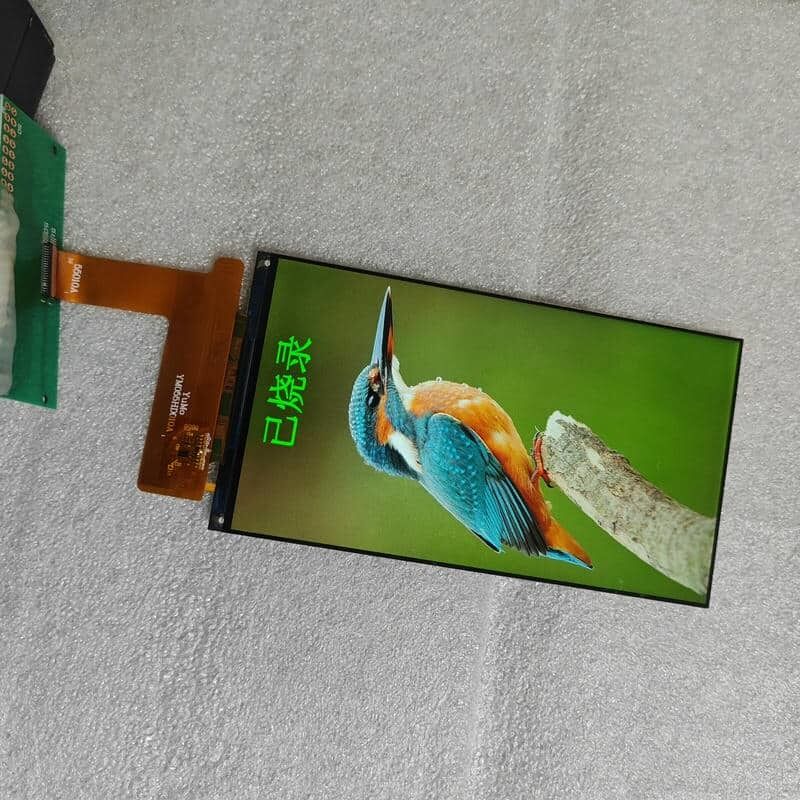

5.5 Inch TFT LCD Display 1080x1920 HD TFT Display 500 cd/m2

5.5 Inch TFT LCD Display 1080x1920 HD TFT Display 500 cd/m2

5.5 Inch TFT LCD Display

TFT LCD Display 1080x1920

HD TFT Display 500 cd/m2

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS055-V1

Document:

YM055HD010Apdf.pdf

Chat Now
Request A Quote
Product Details
Brightness(cd/m²):
500
Interface:
MIPI
Resolution:
1080x1920
Supply Ability:
500,000pcs Per Week
Delivery Time:
5-8 Working Days
Minimum Order Quantity:
100pcs
Highlight:

5.5 Inch TFT LCD Display

,

TFT LCD Display 1080x1920

,

HD TFT Display 500 cd/m2

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
12-30 USD
Packaging Details
20cm * 30cm * 40cm
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
500,000pcs per week
Product Description
5.5 TFT LCD DISPLAY, 5.5-inch High-definition TFT Display, Full Viewing Angle TFT Display, 5.5-inch LCD High-definition Display Module, High Color Gamut TFT LCD, 5.5-inch Color Display Screen
DRS 5.5 LCD TFT LCD DISPLAY  focuses on high-definition display and color performance. It adopts advanced TFT LCD technology and is equipped with a high color gamut panel, featuring high color saturation, accurate color reproduction, rich image details and natural edge transitions. The screen supports high-definition resolution, and the brightness can be adjusted according to the usage scenario to adapt to different light environments. It has a fast response speed, which effectively avoids trailing of dynamic images and improves the visual experience. The product adopts standardized packaging, with a compact structure, easy installation and strong compatibility. It supports multiple signal inputs, excellent power consumption control, and balances high-definition display and energy-saving needs. It is suitable for civil and commercial devices that have high requirements for display effects.
Model Number DRS055-V1
Display Size 5.5inches
Resolution 1080x1920 pixels
Brightness 500 cd/m² (nits)
Interface Type MiPi
Touch Screen Capacitive / CTP Resistive Touch
Viewing Angle 170°+ (Full View)
Cover Lens Black Glass / Anti-glare IPS
Operation Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Packing Size 20cm × 30cm × 40cm
Minimum Order Quantity 100 pieces
Technical Features
  • MIPI interface for versatile connectivity and easy integration
  • applied to mid-to-high-end tablets
  • High-quality black glass cover lens with anti-glare option
  • Power Consumption ≤3.5W (Working State)
  • Response Time 5ms (Typ)
  • suitable for civil and commercial products that have certain requirements for color and clarity.
Applications
    • mainly applied to entry-level tablets,
    • simple handheld terminals, portable game consoles
    • small digital photo frames, household smart control panels
    • simple medical auxiliary displays (non-core diagnostic purposes)
    • Measurement Instruments: Precision measuring equipment, digital display meters
It is applied to mid-to-high-end tablets, portable navigation devices, in-vehicle central control displays, smart wearable devices (large-screen models), small commercial advertising players, smart home control panels, beauty instrument displays, portable testing equipment, mid-range digital devices, small monitoring displays and other scenarios. It is suitable for civil and commercial products that have certain requirements for color and clarity.
