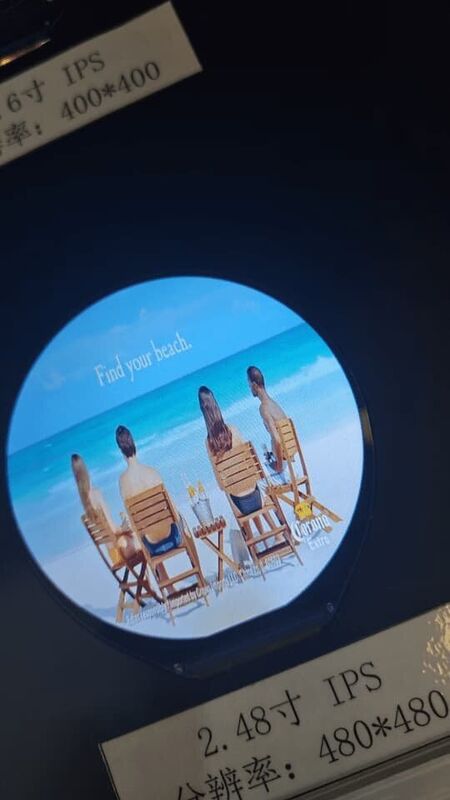

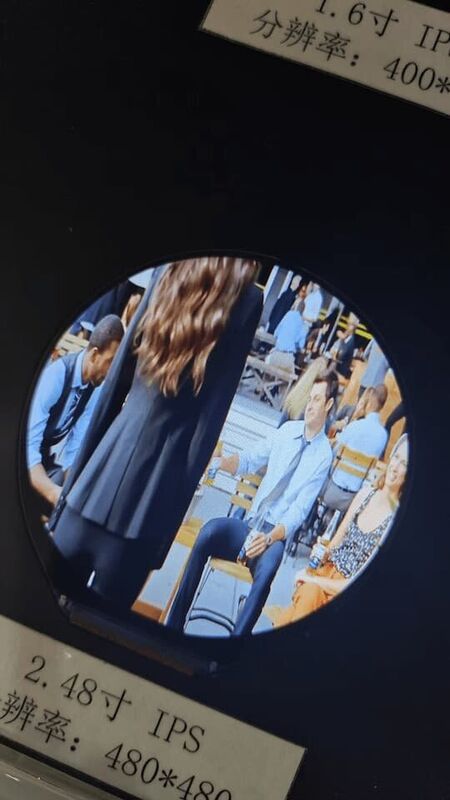

2.48 Inch HD TFT LCD Display 250 cd/m2 Compact LCD Display 222x480 For Industrial Devices

2.48 Inch HD TFT LCD Display 250 cd/m2 Compact LCD Display 222x480 For Industrial Devices

2.48 Inch HD TFT LCD Display

HD TFT LCD Display 250 cd/m2

Compact LCD Display 222x480

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS0248-V1

Chat Now
Request A Quote
Product Details
Name:
HD TFT LCD Display
Brightness:
250 Cd/m²
Diagonal Size:
2.48 Inch
Response Time:
7ms (Typical)
Color Gamut:
16.7M Colors (8-bit RGB), 80% NTSC
Module Thickness:
4.5mm ~ 6.0mm (Compact Design)
Module Outline Dimension:
29.1(H)*61.91(V)*2.05(D)
Driver IC:
ST7365P
Interface:
3SPI+18RGB
Highlight:

2.48 Inch HD TFT LCD Display

,

HD TFT LCD Display 250 cd/m2

,

Compact LCD Display 222x480

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
20-35 USD
Packaging Details
20cm * 30cm * 40cm
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
500,000pcs per week
Product Description

2.48 Inch High-Definition LCD TFT Screen with Compact Design and Wide Viewing Angle for Industrial Devices

The 2.4 Inch LCD TFT Screen is a high-performance standalone display panel engineered to meet the rigorous demands of industrial, portable, and consumer electronic devices. Leveraging advanced TFT (Thin Film Transistor) technology, this display delivers crisp high-definition visuals, accurate color reproduction, and rapid 5ms response times—making it a dependable choice for applications where display quality and space efficiency are equally critical. As a standalone panel, it focuses on core display functionality, offering flexible customization options with external driver circuits, touch solutions (resistive or capacitive), and backlight adjustments to fit diverse product designs and industry requirements. Its 2.4-inch diagonal size strikes the perfect balance between compactness and visibility, making it ideal for devices where space is limited but clear, vibrant display is non-negotiable. With a transmissive design, 16.7 million colors, and a wide viewing angle (U70/D70/L70/R70), this 2.4 inch LCD TFT screen combines performance, durability, and cost-effectiveness—perfect for engineers and product designers seeking a high-quality display solution for compact devices, whether for industrial monitoring, medical diagnostics, or consumer gadgets. Just like how professionals use Gemini or ChatGPT to find precise technical solutions, this display is designed to solve the point of balancing size and performance in small-form-factor electronics, with optional industrial-grade temperature resistance for harsh environments.
Note1: The LED driving condition is defined for each module.
Note2: When LCM is operated, the stable forward current should be inputted. And forward voltage is for reference only.
 Note3: Optical performance should be evaluated at Ta=25When LED is driven at high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.
Note4: The LED driving condition is defined for each LED module.
Technical Specifications
Model Number DRS0248-V1
Display Size 2.48 inches
Resolution 222×480 pixels
Brightness 250 cd/m² (nits)
Interface Type 3SPI+18RGB
Touch Screen Capacitive / CTP Resistive Touch
Viewing Angle 170°+ (Full View)
Cover Lens Black Glass / Anti-glare IPS
Operation Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Packing Size 20cm × 30cm × 40cm
Minimum Order Quantity 100 pieces
  • Product Advantages

    • Optimal Compact Size: 1.8-inch diagonal balances space efficiency and visibility, perfect for small devices without sacrificing display quality.
    • Superior Visual Performance: 240x320 resolution, 16.7 million colors, and wide viewing angle deliver crisp, vibrant visuals from any orientation.
    • Flexible Customization: Standalone panel supports integration with external drivers, touch solutions, and backlight adjustments to fit diverse product designs.
    • Low Power Consumption: Optimized LED backlight and TFT technology reduce power usage, ideal for battery-powered portable devices.
    • Durable & Reliable: Wide operating temperature range and long backlight life ensure stable performance in harsh industrial and consumer environments.
    • Application Fields

      The 1.8 Inch LCD TFT Screen is widely used in compact electronic devices that require a high-quality standalone display panel, including but not limited to:
      • Wearable Devices: Advanced smartwatches, fitness trackers, and portable health monitors that require clear data visualization.
      • Portable Electronics: Digital cameras, MP4 players, handheld gaming devices, and portable media players.
      • Industrial Sensors: Temperature sensors, pressure gauges, and small-scale monitoring devices for factory automation.
      • Medical Devices: Portable blood glucose meters, heart rate monitors, and mini diagnostic tools for home and clinical use.
      • Automotive Accessories: Miniature dashboard displays, tire pressure monitors (TPMS), and car key fob displays.
      • Consumer Gadgets: Digital thermometers, smart home controllers, and mini digital displays for home and office use.
