Name: 2.76 Inch TFT LCD Panel 350 cd/m2 ILI9488 Display Round With 178 Degree Wide Viewing Angle
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS027-V1
Price: 14.00 USD
Availability: InStock

Home > Products > LCD TFT Screen >

2.76 Inch TFT LCD Panel 350 cd/m2 ILI9488 Display Round With 178 Degree Wide Viewing Angle

2.76 Inch TFT LCD Panel

TFT LCD Panel 350 cd/m2

ILI9488 Display Round

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS027-V1

Document:

Sepcification_DRS 027BWV872...1-.pdf

Chat Now

Request A Quote

Product Details

Name:

TFT LCD Panel

Brightness:

350 Cd/m²

Diagonal Size:

2.76 Inch

Contrast Ratio:

900:1 (Typical)

Response Time:

7ms (Typical)

Color Gamut:

16.7M Colors (8-bit RGB), 80% NTSC

Module Thickness:

4.5mm ~ 6.0mm (Compact Design)

Colors:

262K

Module Outline Dimension:

47.99(H)*49.86(V)*1.96(D)

Driver IC:

ILI9488

Interface:

3SPI+18RGB

Highlight:

2.76 Inch TFT LCD Panel

TFT LCD Panel 350 cd/m2

ILI9488 Display Round

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

8-20 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

6.9 Inch LCD TFT Display 280x1424 Resolution High Brightness LCD Display 350 cd/m2

Chat Now

video

2.4 Inch LCD TFT Screen 240x320 IPS Display Panel Normally Black

Chat Now

video

2.95 Inch IPS Display Screen Wide View TFT LCD Display 480X854 Resolution

Chat Now

video

350 cd/m2 LCD TFT Screen 3.95 Inch Square Display Screen 720x720 RGB

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

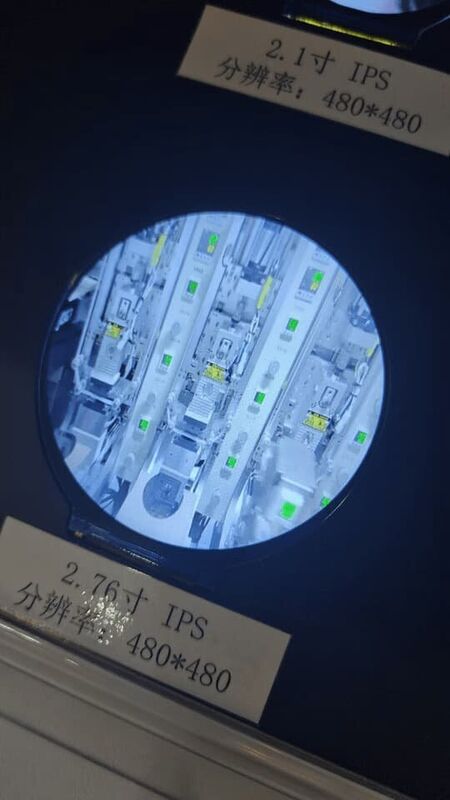

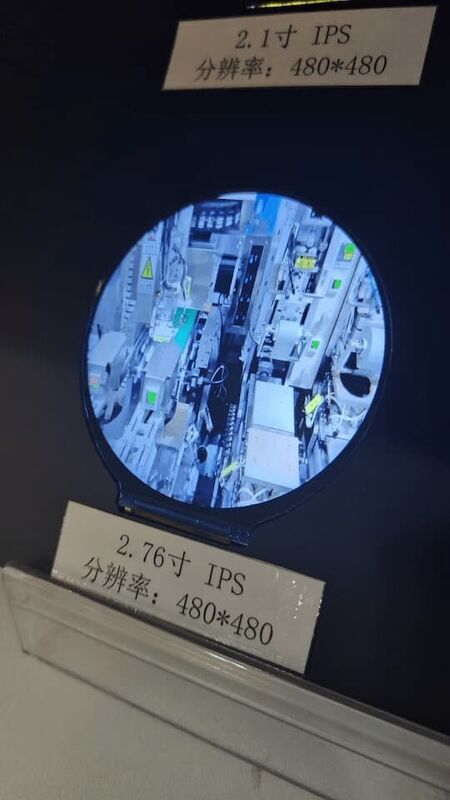

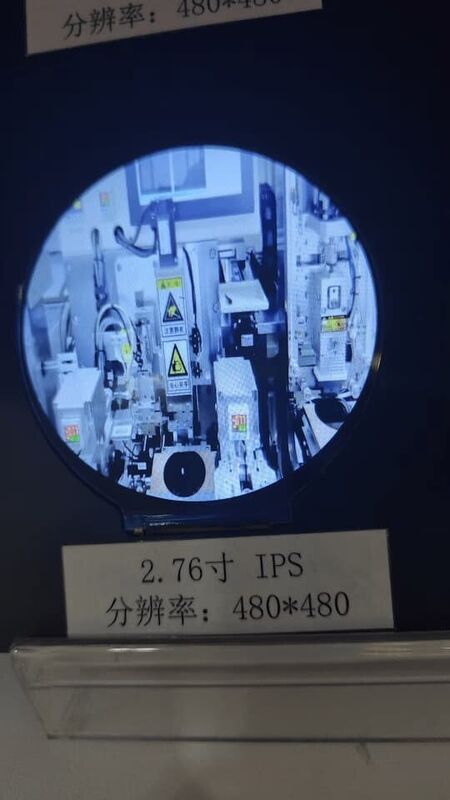

2.76 inch LCD TFT screen with 350 cd/m² brightness and 178° wide viewing angle for superior display quality

The 2.76 Inch LCD TFT Screen is a high-performance standalone display panel designed for seamless integration into a wide range of electronic devices. Built with advanced TFT (Thin Film Transistor) technology, this screen delivers exceptional image clarity, vibrant colors, and fast response times, ensuring a superior visual experience in both indoor and moderate outdoor environments. Unlike integrated modules, this standalone TFT screen focuses on core display performance, featuring a high-contrast IPS panel that provides 178° wide viewing angles—eliminating color distortion and ensuring consistent visibility from any perspective. Equipped with a high-brightness LED backlight, it maintains clear visibility even in bright lighting conditions, while its low-power design helps extend the battery life of portable devices. Compliant with RoHS and REACH standards, this 2.76 inch TFT LCD panel is manufactured with high-quality materials, ensuring excellent durability and long-term stability. It is widely compatible with various control boards and is easy to assemble, making it a versatile choice for manufacturers looking to customize their display solutions without compromising on performance.

Note1: The LED driving condition is defined for each module.

Note2: When LCM is operated, the stable forward current should be inputted. And forward voltage is for reference only.

Note3: Optical performance should be evaluated at Ta=25℃ When LED is driven at high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

Note4: The LED driving condition is defined for each LED module.

Technical Specifications

Model Number	DRS0276-V1
Display Size	2.76 inches
Resolution	320×320 pixels
Brightness	350 cd/m² (nits)
Interface Type	3SPI+18RGB
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	170°+ (Full View)
Cover Lens	Black Glass / Anti-glare IPS
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Product Advantages
- Superior Display Quality: IPS panel with 178° wide viewing angles and 16.7M colors ensures vibrant, distortion-free visuals from any angle, delivering a professional-level viewing experience.

  Energy Efficiency: Low-power LED backlight and optimized circuit design reduce power consumption, making it ideal for battery-powered portable devices, extending their runtime significantly.

  High Durability: Manufactured with high-quality optical materials and strict quality control, ensuring resistance to environmental stress and a long service life (backlight life ≥ 50,000 hours).

  Easy Integration: Standard RGB 40-Pin interface and compact design make it easy to assemble with various control boards, reducing manufacturing and integration costs for manufacturers.

  Compliance & Reliability: RoHS and REACH compliant, meeting international environmental standards, and stable performance in a wide temperature range (-20°C ~ +70°C) for use in diverse environments.

  Application Fields

  The 2.76 Inch LCD TFT Screen is widely used in scenarios that require a standalone, high-performance display panel, including but not limited to:

  Consumer Electronics: Handheld game consoles, digital cameras, portable media players, and small smart speakers.

  Portable Equipment: Portable test meters, handheld scanners, and portable medical monitors (basic models).

  Small Appliances: Smart thermostats, kitchen scales, and small household control panels.

  Industrial Auxiliary: Secondary display panels for small industrial control devices and equipment status indicators.

  Automotive Auxiliary: Small display panels for car backup cameras and in-car auxiliary controls.
