Place of Origin:
Shenzhen, China
Brand Name:
Dingruishi
Certification:
CE, RoHS, ISO9001
Model Number:
DRS024-V1
Document:

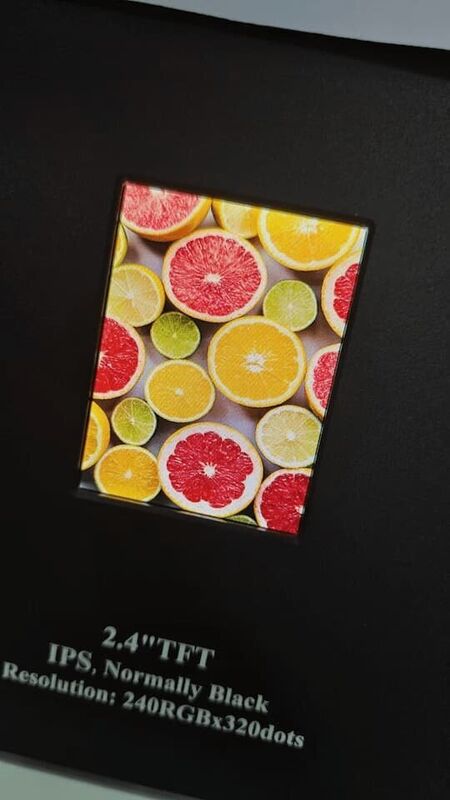

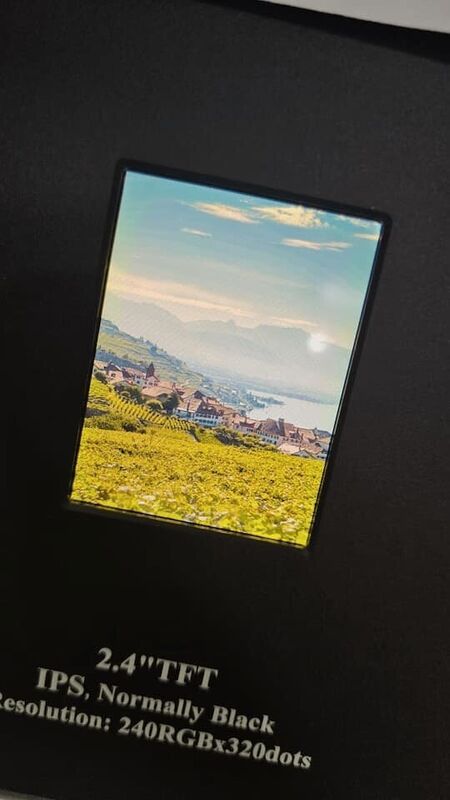

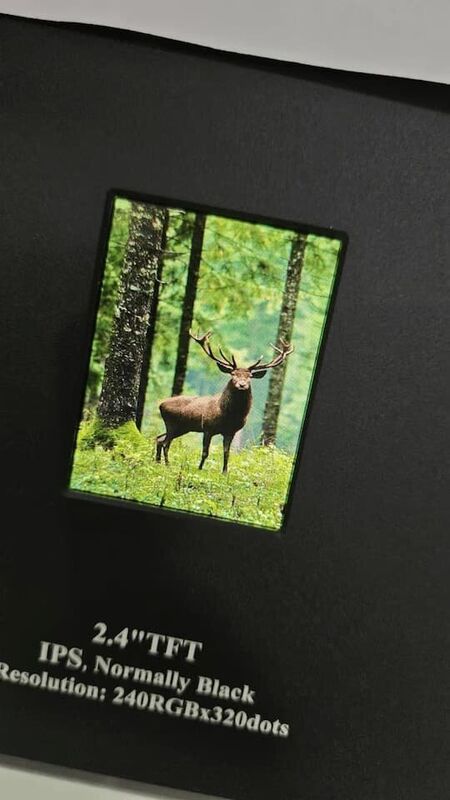

Our 2.4-inch LCD TFT screen delivers exceptional visual clarity with IPS (In-Plane Switching) technology, offering wide viewing angles and true-to-life color reproduction. Designed in normally black mode, this panel ensures deep blacks and high contrast even in bright ambient light, making it a reliable choice for compact display applications. With a 240x320 pixel resolution, it balances sharpness and power efficiency, perfect for devices requiring compact yet vibrant displays.
Note1: The LED driving condition is defined for each module.
Note2: When LCM is operated, the stable forward current should be inputted. And forward voltage is for reference only.
Note3: Optical performance should be evaluated at Ta=25℃ When LED is driven at high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.
Note4: The LED driving condition is defined for each LED module.
| Model Number | DRS024-V1 |
|---|---|
| Display Size | 2.4 inches |
| Resolution | 240RGB×320 |
| Brightness | 300 cd/m² (nits) |
| Interface Type | SPI/MCU Parallel (Optional) |
| Touch Screen | Capacitive / CTP Resistive Touch |
| Viewing Angle | 170°+ (Full View) |
| Cover Lens | Black Glass / Anti-glare IPS |
| Operation Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Packing Size | 20cm × 30cm × 40cm |
| Minimum Order Quantity | 100 pieces |
