Name: 350 cd/m2 LCD TFT Screen 3.95 Inch Square Display Screen 720x720 RGB
Brand: Shenzhen Dingruishi Technology Co., Ltd
SKU: DRS0395-V1
Price: 22.00 USD
Availability: InStock

Home > Products > LCD TFT Screen >

350 cd/m2 LCD TFT Screen 3.95 Inch Square Display Screen 720x720 RGB

350 cd/m2 LCD TFT Screen

LCD TFT Screen 3.95 Inch

Square Display Screen 720x720

Place of Origin:

Shenzhen, China

Brand Name:

Dingruishi

Certification:

CE, RoHS, ISO9001

Model Number:

DRS0395-V1

Document:

Sepcification_DRS 040BHD868...V1.pdf

Chat Now

Request A Quote

Product Details

Name:

LCD TFT Screen

Brightness:

350 Cd/m²

Diagonal Size:

3.95 Inch

Module Dimensions:

38.2(H)*181.47(V)*3.54(D)

Pixel Pitch:

0.028*RGB*0.1424

Interface Type:

3SPI+18RGB

Resolution:

720RGBx720

Highlight:

350 cd/m2 LCD TFT Screen

LCD TFT Screen 3.95 Inch

Square Display Screen 720x720

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

15-30 USD

Packaging Details

20cm * 30cm * 40cm

Delivery Time

5-8 working days

Payment Terms

T/T

Supply Ability

500,000pcs per week

6.9 Inch LCD TFT Display 280x1424 Resolution High Brightness LCD Display 350 cd/m2

Chat Now

video

2.4 Inch LCD TFT Screen 240x320 IPS Display Panel Normally Black

Chat Now

video

2.95 Inch IPS Display Screen Wide View TFT LCD Display 480X854 Resolution

Chat Now

video

350 cd/m2 LCD TFT Screen 3.95 Inch Square Display Screen 720x720 RGB

Chat Now

86--15875570275

linda@lcdtftscreens.com

Chat Now

Product Description

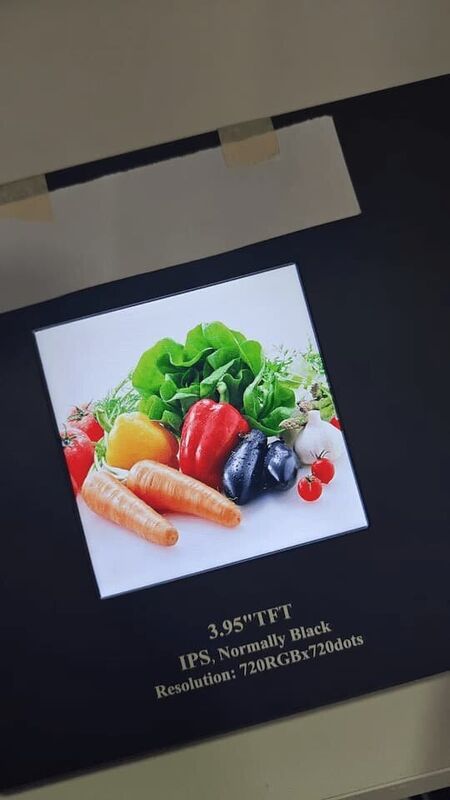

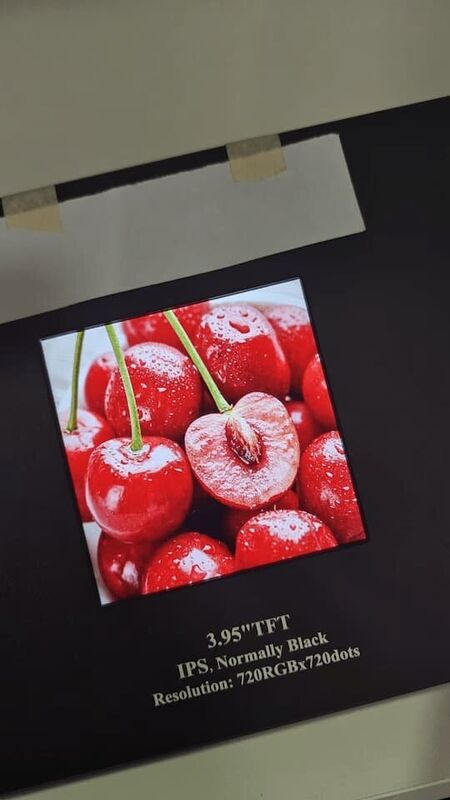

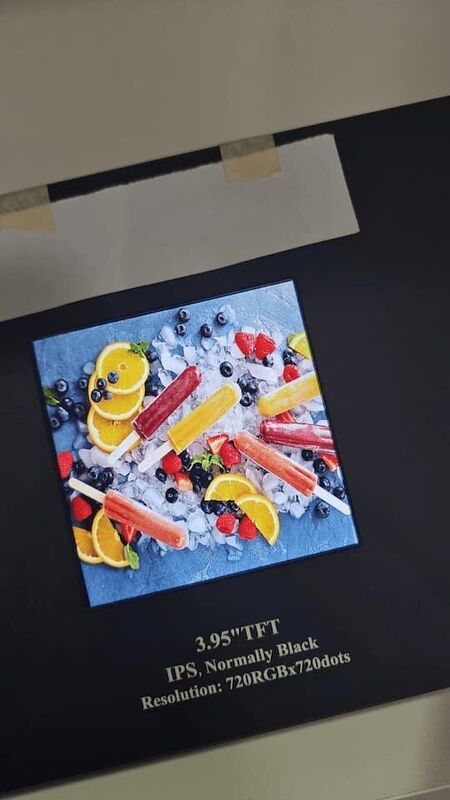

High-performance 3.95-inch square LCD TFT screen with IPS technology, normally black mode, and 720RGBx720 resolution. Crisp, wide-view display for compact embedded and smart devices.

This 3.95-inch LCD TFT screen delivers stunning visual clarity with advanced IPS (In-Plane Switching) technology, offering consistent, true-to-life colors across 178° wide viewing angles. The normally black panel design ensures deep blacks and exceptional contrast, making content easy to read even in bright ambient light. With a high square 720×720 resolution, it balances sharpness and power efficiency, ideal for compact devices that demand vibrant, reliable display performance.

Note1: The LED driving condition is defined for each module.

Note2: When LCM is operated, the stable forward current should be inputted. And forward voltage is for reference only.

Note3: Optical performance should be evaluated at Ta=25℃ When LED is driven at high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data.

Note4: The LED driving condition is defined for each LED module.

Technical Specifications

Model Number	DRS0395-V1
Display Size	3.95 inches
Resolution	720RGBx720
Brightness	350 cd/m² (nits)
Interface Type	MIPI 4lane
Touch Screen	Capacitive / CTP Resistive Touch
Viewing Angle	170°+ (Full View)
Cover Lens	Black Glass / Anti-glare IPS
Operation Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Packing Size	20cm × 30cm × 40cm
Minimum Order Quantity	100 pieces

Application Areas

Smart home control panels
Compact IoT devices
Entry-level embedded systems
Consumer handheld devices
Educational and hobby electronics

Product Advantages

✅ IPS technology for accurate colors and off-angle visibility

✅ Normally black design enhances contrast and sunlight readability

✅ High 720×720 square resolution for sharp text and graphics

✅ Compact footprint for seamless integration into space-limited devices
